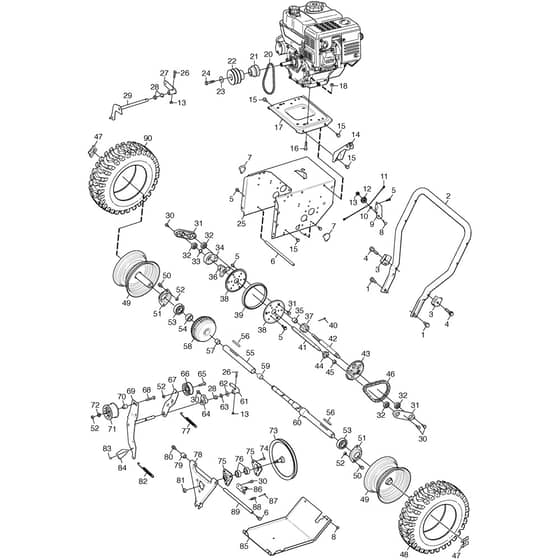

ST 5266 PB - 2016-2020 - 18-2873-31 - Stiga Snow Thrower Transmission Diagram

Name: ST 5266 PB - 2016-2020 - 18-2873-31 - Stiga Snow Thrower Transmission Diagram
SKU: st_5266_pb_18_2873_31_transmission-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 5266 PB - 2016-2020 - 18-2873-31 - Stiga Snow Thrower Transmission Diagram

Description

Stiga ST 5266 PB Parts Diagram

Product Name - ST 5266 PB

Model Year - 2016-2020

Model Type - ST 526 S

Art.N - 18-2873-31

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-1025-16 Available to backorder	Screw	£1.75 £1.46
2	MO118820293/0 Available to backorder	Handle. Lower Part	£84.47 £70.39
3	MO118820294/0 Available to backorder	Bracket	£3.24 £2.70
4	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
5	MO9997-0612-16 Available to backorder	Screw	£1.55 £1.29
9	MO118820094/0 Available to backorder	Pulley Support	£5.06 £4.22
11	MO118820299/0 Available to backorder	Wire	£7.39 £6.16
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO118820301/0 Available to backorder	Connecting Plate	£2.53 £2.11
16	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
17	MO118820302/0 Available to backorder	Engine Fixing Plate	£25.76 £21.47
18	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
20	MO118820303/0 Available to backorder	Belt	£49.82 £41.52
22	MO1811-3119-01 Available to backorder	Pulley	£29.56 £24.63
23	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
24	MO112793312/0 Available to backorder	Screw	£1.78 £1.48
26	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
27	MO1811-3012-01 Available to backorder	Gear Connector	£5.64 £4.70
28	MO1811-3113-01 Available to backorder	Plastic Bushing	£1.82 £1.52
29	MO118820308/0 Available to backorder	Shift Fork	£9.65 £8.04
30	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
31	MO118820309/0 Available to backorder	Bearing Housing	£38.00 £31.67
32	MO118820310/0 Available to backorder	Ball Bearing	£4.78 £3.98
33	MO112609800/0 Available to backorder	Seeger	£1.55 £1.29
34	MO118820312/0 Available to backorder	Shift Bearing	£27.31 £22.76
36	MO118820314/0 Available to backorder	Rubber Wheel Seat	£12.73 £10.61
37	MO118820315/0 Available to backorder	Gear	£7.99 £6.66
38	MO118820110/0 Available to backorder	Inner Ring	£10.18 £8.48
39	MO118820317/0 Available to backorder	Rubber	£20.56 £17.13
40	MO1811-3080-01 Available to backorder	Cotter Pin	£1.97 £1.64
41	MO118820319/0 Available to backorder	Hexagon Shaft	£9.72 £8.10
42	MO118820320/0 Available to backorder	Transit Shaft	£13.51 £11.26
43	MO118820118/0 Available to backorder	Chain Wheel	£35.20 £29.33
44	MO118820322/0 Available to backorder	Sprocket	£3.24 £2.70
46	MO118820119/0 Available to backorder	Chain	£10.84 £9.03
47	MO118820353/0 Available to backorder	Clip	£1.69 £1.41
48	MO118820177/0 Available to backorder	Tyre 16X4.80-8	£116.84 £97.37
49	MO118820179/0 Available to backorder	Narrow Rim	£49.26 £41.05
50	MO112793102/0 In stock	Screw	£1.55 £1.29
51	MO1811-3115-01 Available to backorder	Bearing Housing	£9.72 £8.10
52	MO112155000/0 In stock	Nut	£1.55 £1.29
54	MO118820325/0 Available to backorder	Spacer	£1.79 £1.49
55	MO118820182/0 Available to backorder	Short Semi-Shaft	£10.98 £9.15
56	MO118820328/0 Available to backorder	Flat Key	£1.69 £1.41
57	MO118820329/0 Available to backorder	Bronze Sleeve	£5.06 £4.22
58	MO118820185/0 Available to backorder	Differential	£273.10 £227.58
59	MO118820332/0 Available to backorder	Bronze Sleeve	£7.74 £6.45
60	MO118820187/0 Available to backorder	Long Wheel Shaft	£60.54 £50.45
61	MO118820334/0 Available to backorder	Tensioner	£6.76 £5.63
62	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
63	MO112530150/0 Available to backorder	Spring Washer	£1.36 £1.13
65	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
66	MO1811-3064-01 Available to backorder	Small Tension Pulley	£15.78 £13.15
68	MO112819100/0 Available to backorder	Screw	£1.55 £1.29
69	MO118820338/0 Available to backorder	Bracket	£29.56 £24.63
70	MO1811-3055-01 Available to backorder	Bushing	£3.38 £2.82
71	MO1811-3057-01 Available to backorder	Big Tension Pulley	£33.79 £28.16
72	MO1811-3056-01 Available to backorder	Pad	£1.55 £1.29
73	MO118820339/0 Available to backorder	Pulley	£35.20 £29.33
74	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
75	MO1811-3116-01 Available to backorder	Bearing Housing	£3.94 £3.28
76	MO118820340/0 Available to backorder	Ball Bearing 6002	£6.05 £5.04
77	MO1811-3118-01 Available to backorder	Spring	£3.52 £2.93
81	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
82	MO118820343/0 Available to backorder	Brake Spring	£3.52 £2.93
83	MO118820344/0 Available to backorder	Rivet	£1.26 £1.05
84	MO118820345/0 Available to backorder	Brake Block	£1.69 £1.41
87	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
89	MO1811-3125-01 Available to backorder	Strut	£8.74 £7.28
90	MO118820582/0 Available to backorder	Complete Right Wheel 16*4.8-8	£122.46 £102.05
