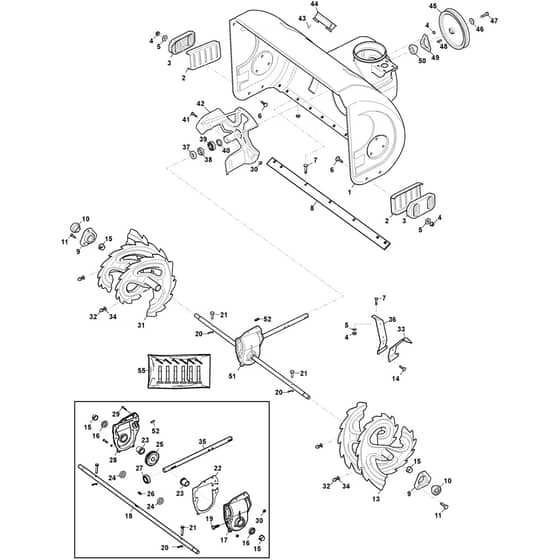

ST 5266 PB - 2016-2020 - 18-2873-31 - Stiga Snow Thrower Auger Housing Diagram

Name: ST 5266 PB - 2016-2020 - 18-2873-31 - Stiga Snow Thrower Auger Housing Diagram
SKU: st_5266_pb_18_2873_31_auger_housing-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 5266 PB - 2016-2020 - 18-2873-31 - Stiga Snow Thrower Auger Housing Diagram

Description

Stiga ST 5266 PB Parts Diagram

Product Name - ST 5266 PB

Model Year - 2016-2020

Model Type - ST 526 S

Art.N - 18-2873-31

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1811-2987-01 Available to backorder	Auger Housing	£485.66 £404.72
3	MO118821102/0 Available to backorder	Skid Shoe	£33.79 £28.16
4	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
5	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
6	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
7	MO112818690/0 Available to backorder	Screw	£1.61 £1.34
8	MO1811-2988-01 Available to backorder	Scraper Blade	£47.87 £39.89
9	MO118820639/0 Available to backorder	Bearing Cover	£7.19 £5.99
10	MO118820147/0 Available to backorder	Bearing	£16.61 £13.84
11	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
13	MO1811-2983-01 Available to backorder	Left Auger	£154.86 £129.05
15	MO118820237/0 Available to backorder	Sleeve	£1.69 £1.41
16	MO1811-3143-01 Available to backorder	Sealing Ring	£9.20 £7.67
17	MO1811-3106-01 Available to backorder	Left Worm Housing	£39.42 £32.85
19	MO118820128/0 Available to backorder	Screw	£1.26 £1.05
20	MO1811-3080-01 Available to backorder	Cotter Pin	£1.97 £1.64
21	MO118820625/0 Available to backorder	Shear Bolt	£1.55 £1.29
22	MO1811-3107-01 Available to backorder	Paper Washer	£6.34 £5.28
23	MO118820241/0 Available to backorder	Sleeve	£7.46 £6.22
24	MO118820818/0 Available to backorder	Washer	£281.56 £234.63
25	MO1811-3108-01 Available to backorder	Worm Gear	£68.99 £57.49
26	MO1811-3144-01 Available to backorder	Key	£2.12 £1.77
27	MO118820153/0 Available to backorder	Ball Bearing	£6.47 £5.39
29	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
30	MO112154510/0 In stock	Nut	£1.55 £1.29
31	MO1811-2984-01 Available to backorder	Right Auger	£154.86 £129.05
32	MO118820156/0 Available to backorder	Oil Cup	£1.40 £1.17
33	MO118820627/0 Available to backorder	Right Support	£6.16 £5.13
34	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
35	MO1811-3101-01 Available to backorder	Worm Shaft	£48.37 £40.31
36	MO118821103/0 Available to backorder	Left Support	£14.22 £11.85
37	MO118820157/0 Available to backorder	Ball Bearing	£7.76 £6.47
38	MO1811-3109-01 Available to backorder	Shaft Sleeve	£1.40 £1.17
39	MO118820158/0 Available to backorder	Ball Bearing	£8.45 £7.04
40	MO118820629/0 Available to backorder	Seal Ring	£7.31 £6.09
41	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
42	MO118820630/1 Available to backorder	Fan	£111.76 £93.13
44	MO118820250/0 Available to backorder	Support	£13.09 £10.91
45	MO1811-3103-01 Available to backorder	Belt Pulley	£42.23 £35.19
46	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
47	MO9997-1025-16 Available to backorder	Screw	£1.75 £1.46
48	MO118820252/0 Available to backorder	Key 6x20	£1.97 £1.64
49	MO118820251/0 Available to backorder	Round Bottom	£3.79 £3.16
50	MO118820292/0 Available to backorder	Ball Bearing	£2.12 £1.77
51	MO118820819/0 Available to backorder	Gear Box Assy	£235.68 £196.40
52	MO118820876/0 Available to backorder	Cylinder Pin 6x14	£1.55 £1.29
55	MO1812-9039-01 Available to backorder	Shear Bolt Kit (6Pcs) Kit with 6pcs (pos20+21 included)	£19.76 £16.47
