ST 5266 P TRAC - 2021-2026 - 2S2666611/ST1 - Stiga Snow Thrower Transmission Diagram

Description

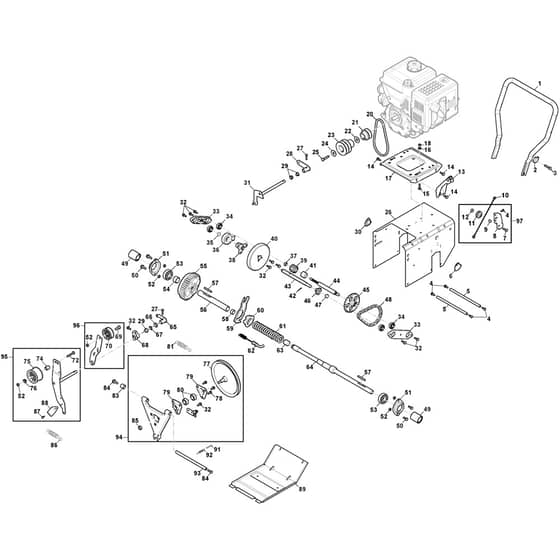

Stiga ST 5266 P TRAC Parts Diagram

Product Name - ST 5266 P TRAC

Model Year - 2021-2026

Model Type - ST 665 T

Art.N - 2S2666611/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118820293/0 Available to backorder	Handle. Lower Part	£84.47 £70.39
2	MO118820631/0 Available to backorder	Plate	£1.97 £1.64
3	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
4	MO9997-0612-16 Available to backorder	Screw	£1.55 £1.29
5	MO118821156/0 Available to backorder	Strut	£4.66 £3.88
8	MO118820753/0 Available to backorder	Pulley Support	£5.06 £4.22
10	MO118820299/0 Available to backorder	Wire	£7.39 £6.16
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO118820301/0 Available to backorder	Connecting Plate	£2.53 £2.11
14	MO112793102/0 In stock	Screw	£1.55 £1.29
15	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
16	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
17	MO118821157/0 Available to backorder	Engine Plate	£29.56 £24.63
18	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
20	MO118821158/0 Available to backorder	Belt	£43.08 £35.90
21	MO118821159/0 Available to backorder	Drive Wheel	£21.05 £17.54
22	MO118821160/0 Available to backorder	Washer	£1.69 £1.41
23	MO118820671/0 Available to backorder	Drive Pulley	£40.82 £34.02
24	MO118821204/0 Available to backorder	Washer	£1.69 £1.41
25	MO118820775/0 Available to backorder	Screw	£1.73 £1.44
26	MO118820633/0 Available to backorder	Transmission Housing	£168.92 £140.77
28	MO1811-3012-01 Available to backorder	Gear Connector	£5.64 £4.70
29	MO1811-3113-01 Available to backorder	Plastic Bushing	£1.82 £1.52
31	MO118820308/0 Available to backorder	Shift Fork	£9.65 £8.04
32	MO112791213/1 In stock	Screw	£1.55 £1.29
33	MO118820309/0 Available to backorder	Bearing Housing	£38.00 £31.67
34	MO118820310/0 Available to backorder	Ball Bearing	£4.78 £3.98
36	MO118820312/0 Available to backorder	Shift Bearing	£27.31 £22.76
38	MO118820634/0 Available to backorder	Rubber Wheel Seat	£14.80 £12.33
39	MO118820315/0 Available to backorder	Gear	£7.99 £6.66
40	MO118820635/1 Available to backorder	Clutch Disc With Rubber From S.N 25FC4STH000001	£53.50 £44.58
42	MO1811-3080-01 Available to backorder	Cotter Pin	£1.97 £1.64
43	MO118820319/0 Available to backorder	Hexagon Shaft	£9.72 £8.10
44	MO118820320/0 Available to backorder	Transit Shaft	£13.51 £11.26
46	MO118820322/0 Available to backorder	Sprocket	£3.24 £2.70
48	MO118820324/0 Available to backorder	Chain	£10.91 £9.09
49	MO1811-3016-01 Available to backorder	Bracket	£6.64 £5.53
51	MO1811-3115-01 Available to backorder	Bearing Housing	£9.72 £8.10
52	MO112155000/0 In stock	Nut	£1.55 £1.29
53	MO118820637/0 Available to backorder	Ball Bearing	£12.38 £10.32
54	MO118820325/0 Available to backorder	Spacer	£1.79 £1.49
55	MO118820326/0 Available to backorder	Differential	£239.32 £199.43
56	MO118820327/0 Available to backorder	Shaft	£10.42 £8.68
57	MO118820328/0 Available to backorder	Flat Key	£1.69 £1.41
58	MO118820329/0 Available to backorder	Bronze Sleeve	£5.06 £4.22
59	MO118820330/0 Available to backorder	Fork	£4.50 £3.75
60	MO1811-3007-01 Available to backorder	Auxiliary Clutch	£8.87 £7.39
61	MO1811-3005-01 Available to backorder	Spring	£4.66 £3.88
62	MO118821176/0 Available to backorder	Differential Cable	£12.60 £10.50
63	MO118820332/0 Available to backorder	Bronze Sleeve	£7.74 £6.45
64	MO118820333/0 Available to backorder	Shaft	£63.35 £52.79
65	MO118821162/0 Available to backorder	Tension Connector	£5.76 £4.80
66	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
67	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
69	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
70	MO118821213/0 Available to backorder	Big Tension Pulley	£14.00 £11.67
72	MO112793801/0 Available to backorder	Screw	£2.08 £1.73
74	MO1811-3055-01 Available to backorder	Bushing	£3.38 £2.82
75	MO1811-3057-01 Available to backorder	Big Tension Pulley	£33.79 £28.16
76	MO1811-3056-01 Available to backorder	Pad	£1.55 £1.29
77	MO118820339/0 Available to backorder	Pulley	£35.20 £29.33
78	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
79	MO1811-3116-01 Available to backorder	Bearing Housing	£3.94 £3.28
80	MO118820340/0 Available to backorder	Ball Bearing 6002	£6.05 £5.04
81	MO1811-3118-01 Available to backorder	Spring	£3.52 £2.93
84	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
85	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
86	MO118820343/0 Available to backorder	Brake Spring	£3.52 £2.93
87	MO118820344/0 Available to backorder	Rivet	£1.26 £1.05
88	MO118820345/0 Available to backorder	Brake Block	£1.69 £1.41
89	MO118820638/0 Available to backorder	Bottom Plate	£52.08 £43.40
91	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
92	MO118820349/0 Available to backorder	Spring	£1.97 £1.64
93	MO1811-3125-01 Available to backorder	Strut	£8.74 £7.28
94	MO118821105/0 Available to backorder	Friction Disc Assy	£68.56 £57.13
95	MO118821234/0 Available to backorder	Big Tension Plate Assy	£21.47 £17.89
96	MO118821108/1 Available to backorder	Small Tension Plate Assy	£27.74 £23.12
97	MO118821109/0 Available to backorder	Pulley Seat Assy	£22.25 £18.54
