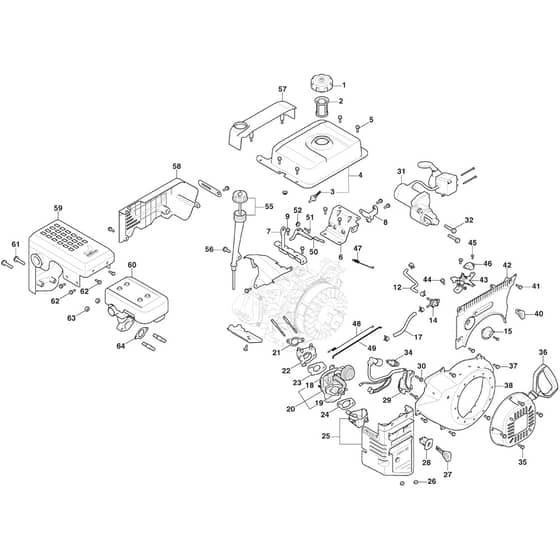

ST 5266 P TRAC - 2021-2026 - 2S2666611/ST1 - Stiga Snow Thrower Starter Assy and Tank Diagram

Name: ST 5266 P TRAC - 2021-2026 - 2S2666611/ST1 - Stiga Snow Thrower Starter Assy and Tank Diagram
SKU: st_5266_p_trac_2s2666611_st1_starter_assy_and_tank-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 5266 P TRAC - 2021-2026 - 2S2666611/ST1 - Stiga Snow Thrower Starter Assy and Tank Diagram

Description

Stiga ST 5266 P TRAC Parts Diagram

Product Name - ST 5266 P TRAC

Model Year - 2021-2026

Model Type - ST 665 T

Art.N - 2S2666611/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550650/0 Available to backorder	Cap	£27.31 £22.76
2	MO118551176/0 Available to backorder	Fuel Filter	£3.38 £2.82
3	MO118552380/0 Available to backorder	Fuel Tank Hose Connection	£5.06 £4.22
4	MO118552377/0 Available to backorder	Fuel Tank	£57.71 £48.09
6	MO118552400/0 Available to backorder	Bracket	£14.22 £11.85
7	MO118552399/0 Available to backorder	Bracket	£14.50 £12.08
8	MO118552428/0 Available to backorder	Bracket	£11.12 £9.27
12	MO118552450/0 Available to backorder	Fuel Hose	£14.00 £11.67
15	MO118550648/0 Available to backorder	Knob	£38.00 £31.67
17	MO118552449/0 Available to backorder	Fuel Hose	£8.87 £7.39
18	MO118551184/0 Available to backorder	Air Purge Pump	£15.90 £13.25
20	MO118552363/0 Available to backorder	Carburetor	£78.14 £65.12
21	MO118552366/0 Available to backorder	Carburetor Gasket	£1.69 £1.41
22	MO118552374/0 Available to backorder	Carburettor Insulator	£4.22 £3.52
23	MO118552369/0 Available to backorder	Carburetor Gasket	£1.69 £1.41
24	MO118552370/0 Available to backorder	Carburetor Gasket	£2.95 £2.46
25	MO118552401/0 Available to backorder	Air Cleaner Assy	£24.36 £20.30
26	MO112292102/0 In stock	Nut	£1.69 £1.41
27	MO118550639/1 Available to backorder	Switch Key	£7.40 £6.17
28	MO118552433/0 Available to backorder	Starting Switch	£7.46 £6.22
29	MO118552429/0 Available to backorder	Electronic Coil	£44.45 £37.04
30	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
31	MO118552425/0 Available to backorder	Starter Motor Assy EU plug	£253.40 £211.17
32	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
34	9408 In stock	Spark Plug (Rn9Yc)	£4.56 £3.80
35	MO112790781/0 In stock	Screw	£1.55 £1.29
36	MO118552412/0 Available to backorder	Governor Assy	£64.75 £53.96
37	MO112790500/0 Available to backorder	Screw	£1.97 £1.64
38	MO118552359/0 Available to backorder	Cover	£52.08 £43.40
40	MO118551319/0 Available to backorder	Knob	£3.79 £3.16
42	MO118552453/0 Available to backorder	Stud Bolt	£16.88 £14.07
43	MO118552394/0 Available to backorder	Remote Control Assy	£13.09 £10.91
46	MO118550399/0 Available to backorder	Micro	£19.18 £15.98
47	MO118552386/0 Available to backorder	Spring	£2.26 £1.88
48	MO118552388/0 Available to backorder	Spring	£2.12 £1.77
49	MO118552382/0 Available to backorder	Governor Rod	£4.37 £3.64
50	MO118552390/0 Available to backorder	Arm Governor	£6.76 £5.63
55	MO118552320/0 Available to backorder	Drain Plug Bolt	£13.51 £11.26
56	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
57	MO118552435/0 Available to backorder	Rear Cover-Tank	£13.93 £11.61
58	MO118552454/0 Available to backorder	Cover	£17.23 £14.36
59	MO118552409/0 Available to backorder	Muffler Guard	£25.20 £21.00
60	MO118552403/0 Available to backorder	Muffler Assy	£86.58 £72.15
61	MO112793102/0 In stock	Screw	£1.55 £1.29
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112293200/0 In stock	Nut	£1.55 £1.29
64	MO118552406/0 Available to backorder	Gasket. Muffler	£2.12 £1.77
