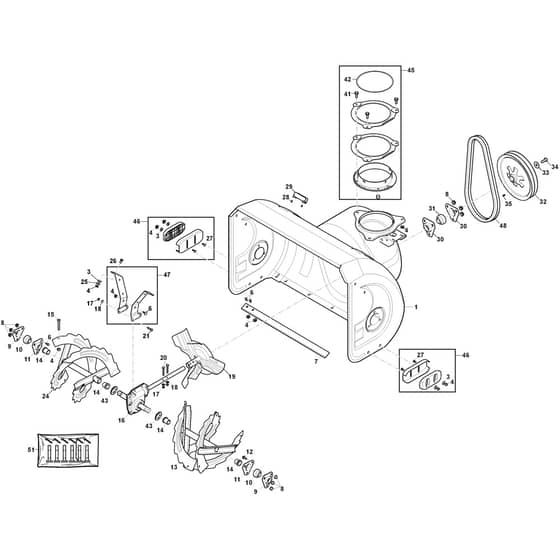

ST 5266 P TRAC - 2021-2026 - 2S2666611/ST1 - Stiga Snow Thrower Auger Housing Diagram

Name: ST 5266 P TRAC - 2021-2026 - 2S2666611/ST1 - Stiga Snow Thrower Auger Housing Diagram
SKU: st_5266_p_trac_2s2666611_st1_auger_housing-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 5266 P TRAC - 2021-2026 - 2S2666611/ST1 - Stiga Snow Thrower Auger Housing Diagram

Description

Stiga ST 5266 P TRAC Parts Diagram

Product Name - ST 5266 P TRAC

Model Year - 2021-2026

Model Type - ST 665 T

Art.N - 2S2666611/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118821163/0 Available to backorder	Auger Housing. Grey	£499.74 £416.45
3	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
4	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO1811-2988-01 Available to backorder	Scraper Blade	£47.87 £39.89
8	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
9	MO118820701/0 Available to backorder	Sealing Bearing Seat	£4.93 £4.11
10	MO118820700/0 Available to backorder	Ball Bearing	£12.48 £10.40
11	MO118820699/0 Available to backorder	Bearing Cover	£4.93 £4.11
14	MO118821165/0 Available to backorder	Sleeve	£2.95 £2.46
16	MO118821167/0 Available to backorder	Auger Transmission	£246.35 £205.29
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO112582100/0 Available to backorder	Grower	£1.55 £1.29
19	MO118821168/0 Available to backorder	Impeller	£112.62 £93.85
20	MO112792410/0 Available to backorder	Screw	£1.55 £1.29
21	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
24	MO118821164/1 Available to backorder	Right Auger	£160.48 £133.73
25	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
26	MO112818690/0 Available to backorder	Screw	£1.61 £1.34
27	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
28	MO112727815/0 Available to backorder	Screw	£1.40 £1.17
29	MO118820250/0 Available to backorder	Support	£13.09 £10.91
30	MO118820718/0 Available to backorder	Bearing Cover	£6.76 £5.63
31	MO118820292/0 Available to backorder	Ball Bearing	£2.12 £1.77
32	MO118820717/0 Available to backorder	Big Pulley	£43.64 £36.37
33	MO112523090/0 Available to backorder	Washer	£1.82 £1.52
34	MO112794300/0 Available to backorder	Screw M10x30	£1.82 £1.52
35	MO118820252/0 Available to backorder	Key	£1.97 £1.64
41	MO112793301/0 In stock	Screw	£1.55 £1.29
42	MO118821171/0 Available to backorder	Rubber Ring	£12.53 £10.44
43	MO118821172/0 Available to backorder	Plastic Washer	£1.69 £1.41
45	MO118821173/0 Available to backorder	Chute Gear Cover Kit	£58.69 £48.91
46	MO118821102/0 Available to backorder	Skid Shoe Assy	£33.79 £28.16
47	MO118821169/0 Available to backorder	Support Assy	£14.70 £12.25
48	MO118820278/1A Available to backorder	Belt	£53.34 £44.45
51	MO1812-9040-01 Available to backorder	Shear Bolt Kit (6Pcs) Kit with 6pcs	£25.28 £21.07
