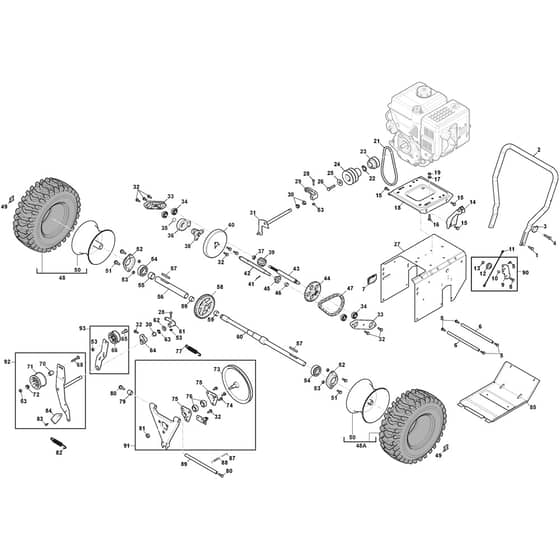

ST 5266 P - 2021-2026 - 2S2664611/ST1 - Stiga Snow Thrower Transmission Diagram

Description

Stiga ST 5266 P Parts Diagram

Product Name - ST 5266 P

Model Year - 2021-2026

Model Type - ST 5266 P

Art.N - 2S2664611/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-1025-16 Available to backorder	Screw	£1.75 £1.46
2	MO118820293/0 Available to backorder	Handle. Lower Part	£84.47 £70.39
3	MO118820631/0 Available to backorder	Plate	£1.97 £1.64
4	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
5	MO9997-0612-16 Available to backorder	Screw	£1.55 £1.29
6	MO118821156/0 Available to backorder	Strut	£4.66 £3.88
7	MO118820632/0 Available to backorder	Cover	£1.55 £1.29
9	MO118820753/0 Available to backorder	Pulley Support	£5.06 £4.22
11	MO118820299/0 Available to backorder	Wire	£7.39 £6.16
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO118820301/0 Available to backorder	Connecting Plate	£2.53 £2.11
15	MO112793102/0 In stock	Screw	£1.55 £1.29
16	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
18	MO118821157/0 Available to backorder	Engine Plate	£29.56 £24.63
19	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
21	MO118821158/0 Available to backorder	Belt	£43.08 £35.90
22	MO118821160/0 Available to backorder	Washer	£1.69 £1.41
23	MO118821159/0 Available to backorder	Drive Wheel	£21.05 £17.54
24	MO118820671/0 Available to backorder	Drive Pulley	£40.82 £34.02
25	MO118821204/0 Available to backorder	Washer	£1.69 £1.41
26	MO118820775/0 Available to backorder	Screw	£1.73 £1.44
27	MO118820633/0 Available to backorder	Transmission Housing	£168.92 £140.77
29	MO118821161/0 Available to backorder	Shift Connector	£5.64 £4.70
30	MO1811-3113-01 Available to backorder	Plastic Bushing	£1.82 £1.52
31	MO118820308/0 Available to backorder	Shift Fork	£9.65 £8.04
32	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
33	MO118820309/0 Available to backorder	Bearing Housing	£38.00 £31.67
34	MO118820310/0 Available to backorder	Ball Bearing	£4.78 £3.98
36	MO118820312/0 Available to backorder	Shift Bearing	£27.31 £22.76
38	MO118820634/0 Available to backorder	Rubber Wheel Seat	£14.80 £12.33
39	MO118820315/0 Available to backorder	Gear	£7.99 £6.66
40	MO118820635/1 Available to backorder	Clutch Disc With Rubber	£53.50 £44.58
41	MO1811-3080-01 Available to backorder	Cotter Pin	£1.97 £1.64
42	MO118820319/0 Available to backorder	Hexagon Shaft	£9.72 £8.10
43	MO118820320/0 Available to backorder	Transit Shaft	£13.51 £11.26
44	MO118820118/0 Available to backorder	Chain Wheel	£35.20 £29.33
45	MO118820322/0 Available to backorder	Sprocket	£3.24 £2.70
47	MO118820119/0 Available to backorder	Chain	£10.84 £9.03
48	MO118820582/0 Available to backorder	Complete Right Wheel 16*4.8-8	£122.46 £102.05
48	MO118821115/0 Available to backorder	Complete Left Wheel 16*4.8-8 (48A)	£122.46 £102.05
49	MO118820353/0 Available to backorder	Clip	£1.69 £1.41
50	MO118820179/0 Available to backorder	Narrow Rim	£49.26 £41.05
52	MO1811-3115-01 Available to backorder	Bearing Housing	£9.72 £8.10
53	MO112155000/0 In stock	Nut	£1.55 £1.29
54	MO118820637/0 Available to backorder	Ball Bearing	£12.38 £10.32
55	MO118820325/0 Available to backorder	Spacer	£1.79 £1.49
56	MO118820182/0 Available to backorder	Short Semi-Shaft	£10.98 £9.15
57	MO118820328/0 Available to backorder	Flat Key	£1.69 £1.41
58	MO118820185/0 Available to backorder	Differential	£273.10 £227.58
59	MO118820332/0 Available to backorder	Bronze Sleeve	£7.74 £6.45
60	MO118820187/0 Available to backorder	Long Wheel Shaft	£60.54 £50.45
61	MO118821162/0 Available to backorder	Tension Connector	£5.76 £4.80
62	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
63	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
65	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
66	MO118821213/0 Available to backorder	Big Tension Pulley	£14.00 £11.67
68	MO112819110/0 In stock	Screw	£1.82 £1.52
70	MO1811-3055-01 Available to backorder	Bushing	£3.38 £2.82
71	MO1811-3057-01 Available to backorder	Big Tension Pulley	£33.79 £28.16
72	MO1811-3056-01 Available to backorder	Pad	£1.55 £1.29
73	MO118820339/0 Available to backorder	Pulley	£35.20 £29.33
74	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
75	MO1811-3116-01 Available to backorder	Bearing Housing	£3.94 £3.28
76	MO118820340/0 Available to backorder	Ball Bearing 6002	£6.05 £5.04
77	MO1811-3118-01 Available to backorder	Spring	£3.52 £2.93
80	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
81	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
82	MO118820343/0 Available to backorder	Brake Spring	£3.52 £2.93
83	MO118820344/0 Available to backorder	Rivet	£1.26 £1.05

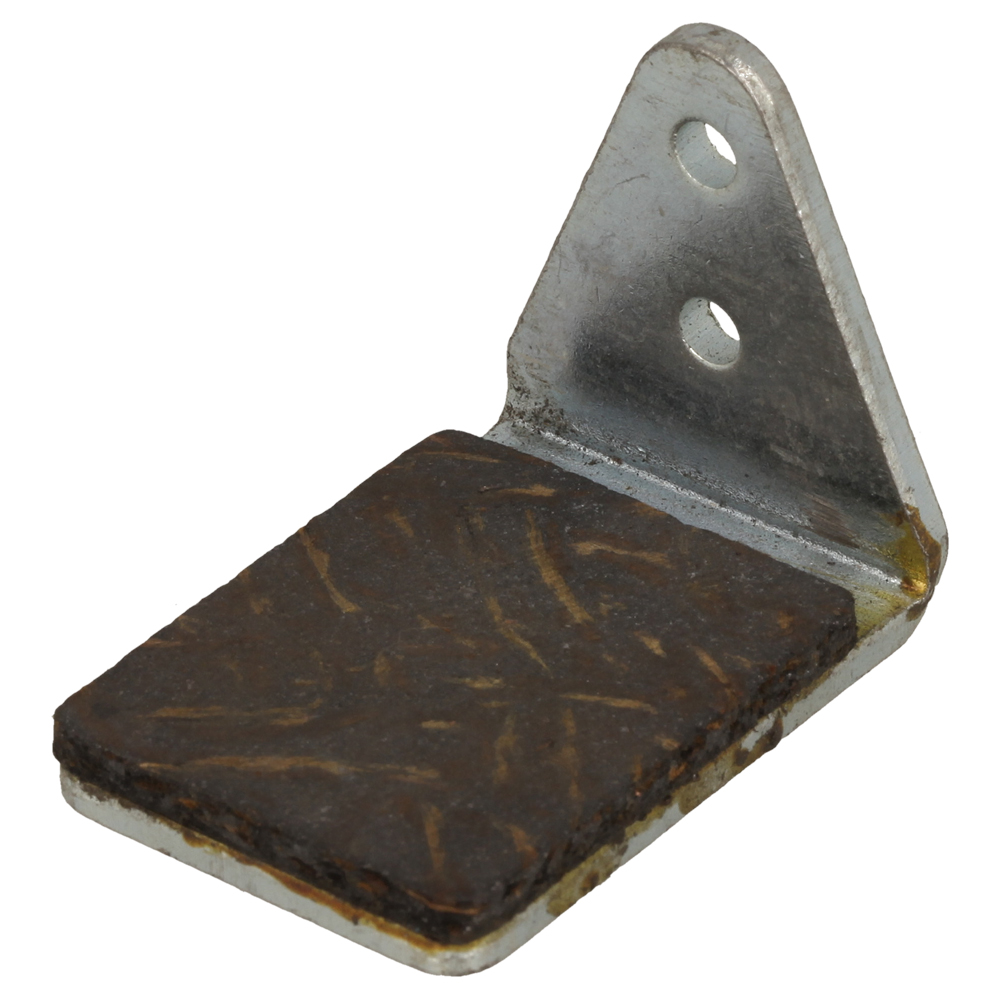

84	MO118820345/0 Available to backorder	Brake Block	£1.69 £1.41
85	MO118820638/0 Available to backorder	Bottom Plate	£52.08 £43.40
87	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
88	MO118820349/0 Available to backorder	Spring	£1.97 £1.64
89	MO1811-3125-01 Available to backorder	Strut	£8.74 £7.28
90	MO118821109/0 Available to backorder	Pulley Seat Assy	£22.25 £18.54
91	MO118821105/0 Available to backorder	Friction Disc Assy	£68.56 £57.13
92	MO118821234/0 Available to backorder	Big Tension Plate Assy	£21.47 £17.89
93	MO118821108/1 Available to backorder	Small Tension Plate Assy	£27.74 £23.12
