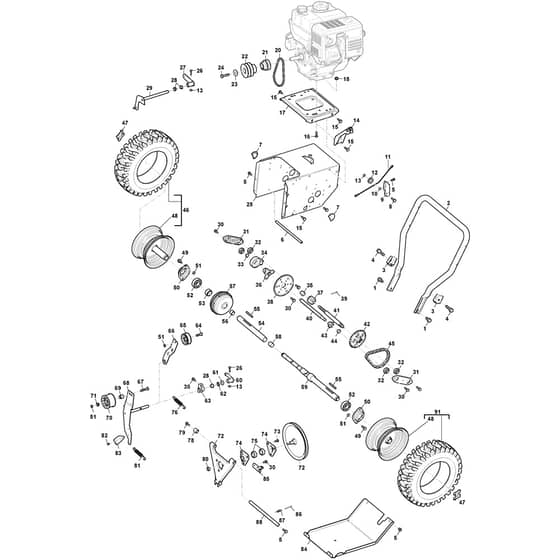

Stiga ST 5262 PB Parts Diagram

Product Name - ST 5262 PB

Model Year - 2017-2020

Model Type - ST 526 S

Art.N - 2S2624521/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-1025-16 Available to backorder	Screw	£1.75 £1.46
2	MO118820293/0 Available to backorder	Handle Lower Part	£84.47 £70.39
3	MO118820631/0 Available to backorder	Plate	£1.97 £1.64
4	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
5	MO9997-0612-16 Available to backorder	Screw	£1.55 £1.29
7	MO118820632/0 Available to backorder	Cover	£1.55 £1.29
9	MO118820753/0 Available to backorder	Pulley Support	£5.06 £4.22
11	MO118820299/0 Available to backorder	Wire	£7.39 £6.16
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO118820301/0 Available to backorder	Connecting Plate	£2.53 £2.11
15	MO112793102/0 In stock	Screw	£1.55 £1.29
16	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
17	MO118820149/0 Available to backorder	Engine Plate - Grey	£33.79 £28.16
18	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
20	MO118820303/0 Available to backorder	Belt	£49.82 £41.52
21	MO118820101/0 Available to backorder	Drive Pulley	£23.80 £19.83
22	MO118820102/0 Available to backorder	Pulley	£27.46 £22.88
23	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
24	MO118820775/0 Available to backorder	Screw	£1.73 £1.44
25	MO118820633/0 Available to backorder	Transmission Housing	£168.92 £140.77
27	MO1811-3012-01 Available to backorder	Gear Connector	£5.64 £4.70
28	MO1811-3113-01 Available to backorder	Plastic Bushing	£1.82 £1.52
29	MO118820308/0 Available to backorder	Shift Fork	£9.65 £8.04
30	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
31	MO118820309/0 Available to backorder	Bearing Housing	£38.00 £31.67
32	MO118820310/0 Available to backorder	Ball Bearing	£4.78 £3.98
34	MO118820312/0 Available to backorder	Shift Bearing	£27.31 £22.76
36	MO118820634/0 Available to backorder	Rubber Wheel Seat	£14.80 £12.33
37	MO118820315/0 Available to backorder	Gear	£7.99 £6.66
38	MO118820635/1 Available to backorder	Clutch Disc With Rubber	£53.50 £44.58
39	MO1811-3080-01 Available to backorder	Cotter Pin	£1.97 £1.64
40	MO118820319/0 Available to backorder	Hexagon Shaft	£9.72 £8.10
41	MO118820320/0 Available to backorder	Transit Shaft	£13.51 £11.26
42	MO118820118/0 Available to backorder	Chain Wheel	£35.20 £29.33
43	MO118820322/0 Available to backorder	Sprocket	£3.24 £2.70
45	MO118820119/0 Available to backorder	Chain	£10.84 £9.03
46	MO118821097/0 Available to backorder	Complete Right Wheel	£147.80 £123.17
47	MO118820353/0 Available to backorder	Clip	£1.69 £1.41
48	MO118820636/0 Available to backorder	Rimm	£60.11 £50.09
50	MO1811-3115-01 Available to backorder	Bearing Housing	£9.72 £8.10
51	MO112155000/0 In stock	Nut	£1.55 £1.29
52	MO118820637/0 Available to backorder	Ball Bearing	£12.38 £10.32
53	MO118820325/0 Available to backorder	Spacer	£1.79 £1.49
54	MO118820182/0 Available to backorder	Short Semi-Shaft	£10.98 £9.15
55	MO118820328/0 Available to backorder	Flat Key	£1.69 £1.41
56	MO118820329/0 Available to backorder	Bronze Sleeve	£5.06 £4.22
57	MO118820185/0 Available to backorder	Differential	£273.10 £227.58
58	MO118820332/0 Available to backorder	Bronze Sleeve	£7.74 £6.45
59	MO118820187/0 Available to backorder	Long Wheel Shaft	£60.54 £50.45
60	MO118820334/0 Available to backorder	Tensioner	£6.76 £5.63
61	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
64	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
65	MO1811-3064-01 Available to backorder	Small Tension Pulley	£15.78 £13.15
67	MO112819105/0 Available to backorder	Screw	£1.97 £1.64
68	MO118820338/0 Available to backorder	Bracket	£29.56 £24.63
69	MO1811-3055-01 Available to backorder	Bushing	£3.38 £2.82
70	MO1811-3057-01 Available to backorder	Big Tension Pulley	£33.79 £28.16
71	MO1811-3056-01 Available to backorder	Pad	£1.55 £1.29
72	MO118820339/0 Available to backorder	Pulley	£35.20 £29.33
73	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
74	MO1811-3116-01 Available to backorder	Bearing Housing	£3.94 £3.28
75	MO118820340/0 Available to backorder	Ball Bearing 6002	£6.05 £5.04
76	MO1811-3118-01 Available to backorder	Spring	£3.52 £2.93
79	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
80	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
81	MO118820343/0 Available to backorder	Brake Spring	£3.52 £2.93
82	MO118820344/0 Available to backorder	Rivet	£1.26 £1.05
83	MO118820345/0 Available to backorder	Brake Block	£1.69 £1.41
84	MO118820638/0 Available to backorder	Bottom Plate	£52.08 £43.40
86	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
87	MO118820349/0 Available to backorder	Spring	£1.97 £1.64
88	MO1811-3125-01 Available to backorder	Strut	£8.74 £7.28
91	MO118821098/0 Available to backorder	Complete Left Wheel	£126.70 £105.58
