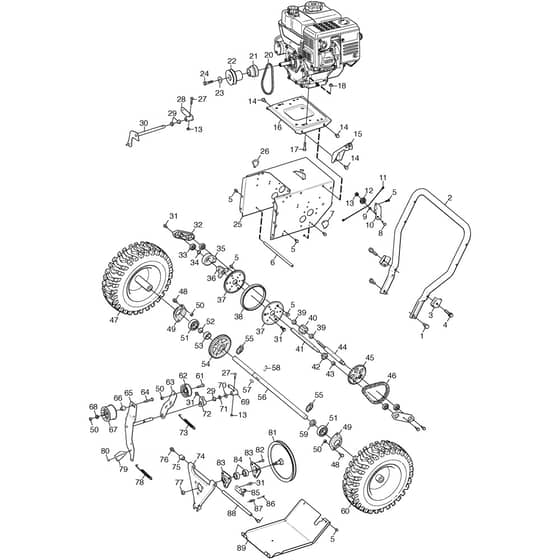

ST 4262 PB - 2016-2020 - 18-2842-31 - Stiga Snow Thrower Transmission Diagram

Name: ST 4262 PB - 2016-2020 - 18-2842-31 - Stiga Snow Thrower Transmission Diagram
SKU: st_4262_pb_18_2842_31_transmission-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 4262 PB - 2016-2020 - 18-2842-31 - Stiga Snow Thrower Transmission Diagram

Description

Stiga ST 4262 PB Parts Diagram

Product Name - ST 4262 PB

Model Year - 2016-2020

Model Type - ST 526 S

Art.N - 18-2842-31

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-1025-16 Available to backorder	Screw	£1.75 £1.46
2	MO118820293/0 Available to backorder	Handle. Lower Part	£84.47 £70.39
3	MO118820294/0 Available to backorder	Bracket	£3.24 £2.70
4	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
5	MO9997-0612-16 Available to backorder	Screw	£1.55 £1.29
10	MO118820094/0 Available to backorder	Pulley Support	£5.06 £4.22
11	MO118820299/0 Available to backorder	Wire	£7.39 £6.16
13	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO118820301/0 Available to backorder	Connecting Plate	£2.53 £2.11
16	MO118820302/0 Available to backorder	Engine Fixing Plate	£25.76 £21.47
17	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
20	MO118820303/0 Available to backorder	Belt	£49.82 £41.52
21	MO118820101/0 Available to backorder	Drive Pulley	£23.80 £19.83
22	MO118820102/0 Available to backorder	Pulley	£27.46 £22.88
23	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
24	MO112793312/0 Available to backorder	Screw	£1.78 £1.48
27	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
28	MO1811-3012-01 Available to backorder	Gear Connector	£5.64 £4.70
29	MO1811-3113-01 Available to backorder	Plastic Bushing	£1.82 £1.52
30	MO118820308/0 Available to backorder	Shift Fork	£9.65 £8.04
31	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
32	MO118820309/0 Available to backorder	Bearing Housing	£38.00 £31.67
33	MO118820310/0 Available to backorder	Ball Bearing	£4.78 £3.98
34	MO112609800/0 Available to backorder	Seeger	£1.55 £1.29
35	MO118820312/0 Available to backorder	Shift Bearing	£27.31 £22.76
36	MO118820314/0 Available to backorder	Rubber Wheel Seat	£12.73 £10.61
37	MO118820110/0 Available to backorder	Inner Ring	£10.18 £8.48
38	MO118820317/0 Available to backorder	Rubber	£20.56 £17.13
40	MO118820315/0 Available to backorder	Gear	£7.99 £6.66
41	MO118820319/0 Available to backorder	Hexagon Shaft	£9.72 £8.10
42	MO118820322/0 Available to backorder	Sprocket	£3.24 £2.70
44	MO118820320/0 Available to backorder	Transit Shaft	£13.51 £11.26
45	MO118820118/0 Available to backorder	Chain Wheel	£35.20 £29.33
46	MO118820119/0 Available to backorder	Chain	£10.84 £9.03
47	MO118820120/0 Available to backorder	Left Wheel Assy Wheel Assy (Tyre & Rim) - Axle Rim ø20.ø19	£85.26 £71.05
48	MO112793102/0 In stock	Screw	£1.55 £1.29
49	MO1811-3115-01 Available to backorder	Bearing Housing	£9.72 £8.10
50	MO112155000/0 In stock	Nut	£1.55 £1.29
51	MO118820121/0 Available to backorder	Ball Bearing	£12.82 £10.68
52	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
53	MO118820122/0 Available to backorder	Sleeve	£3.47 £2.89
54	MO118820123/1 Available to backorder	Drive Gear From 01-7-2019	£111.22 £92.68
55	MO118820379/0 Available to backorder	Fixing Pin	£4.08 £3.40
56	MO118820124/0 Available to backorder	Driving Shaft	£36.59 £30.49
57	MO118820125/0 Available to backorder	Key 6x6x22	£1.40 £1.17
58	MO118820126/0 Available to backorder	Pin 8x25	£1.40 £1.17
60	MO118820581/0 Available to backorder	Complete Right Wheel Wheel Assy (Tyre & Rim) - Axle Rim ø20.ø19	£91.25 £76.04
61	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
62	MO1811-3064-01 Available to backorder	Small Tension Pulley	£15.78 £13.15
64	MO112819100/0 Available to backorder	Screw	£1.55 £1.29
65	MO118820338/0 Available to backorder	Bracket	£29.56 £24.63
66	MO1811-3055-01 Available to backorder	Bushing	£3.38 £2.82
67	MO1811-3057-01 Available to backorder	Big Tension Pulley	£33.79 £28.16
68	MO1811-3056-01 Available to backorder	Pad	£1.55 £1.29
69	MO118820334/0 Available to backorder	Tensioner	£6.76 £5.63
70	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
71	MO112530150/0 Available to backorder	Spring Washer	£1.36 £1.13
73	MO1811-3118-01 Available to backorder	Spring	£3.52 £2.93
77	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
78	MO118820343/0 Available to backorder	Brake Spring	£3.52 £2.93
79	MO118820344/0 Available to backorder	Rivet	£1.26 £1.05
80	MO118820345/0 Available to backorder	Brake Block	£1.69 £1.41
81	MO118820339/0 Available to backorder	Pulley	£35.20 £29.33
82	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
83	MO1811-3116-01 Available to backorder	Bearing Housing	£3.94 £3.28
84	MO118820340/0 Available to backorder	Ball Bearing 6002	£6.05 £5.04
86	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
88	MO1811-3125-01 Available to backorder	Strut	£8.74 £7.28
