ST 290 - 2005-2006 - 282810002/05 - Stiga Trimmer Engine Diagram

Description

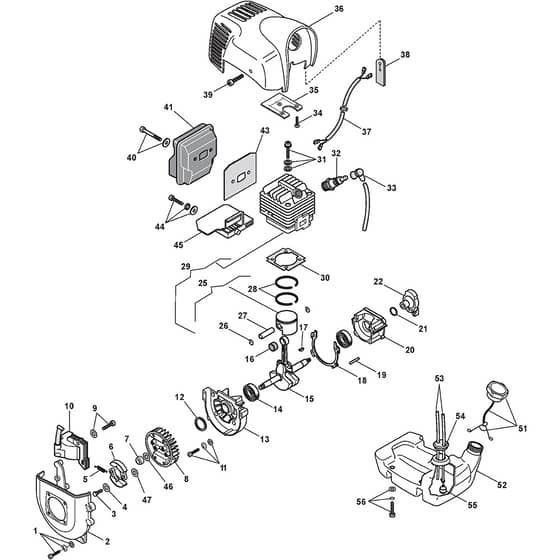

Stiga ST 290 Parts Diagram

Product Name - ST 290

Model Year - 2005-2006

Model Type - STAR 28

Art.N - 282810002/05

Engine Model -

	Part No.	Details
4	MO118804045/0 Available to backorder	Washer	£1.26 £1.05
5	MO6981034 Available to backorder	Spring	£1.55 £1.29
18	MO6981007 Available to backorder	Crankcase Gasket	£2.40 £2.00
21	MO6981008 Available to backorder	Seal Ring	£2.40 £2.00
22	MO183082002/1 In stock	Starter Cup	£4.37 £3.64
28	MO6981013 Available to backorder	Piston Ring	£6.77 £5.64
30	MO6981004 Available to backorder	Cylinder Gasket	£2.82 £2.35
31	MO112760475/0 Available to backorder	Outfit. Screws	£1.97 £1.64
33	MO6981023 Available to backorder	Cover. Spark Plug	£8.38 £6.98
36	MO6981122 Available to backorder	Yellow Cylinder Cover	£5.34 £4.45
44	MO6981116 Available to backorder	Outfit. Screws	£1.38 £1.15
54	MO118801926/0 In stock	Grommet Assy	£5.65 £4.71
55	MO4253291 Available to backorder	Intake Filter	£6.18 £5.15
