Echo SRM-420ES-LW Gear Case and Shield

Name: Echo SRM-420ES-LW Gear Case and Shield
SKU: srm_420es_lw_gear_case_and_shield-group
Price: 0.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

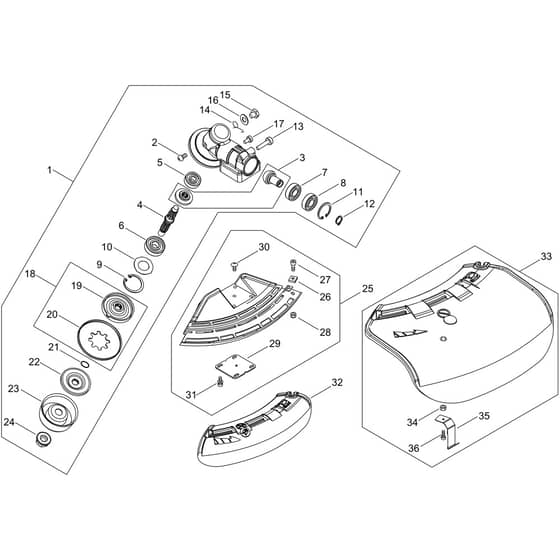

Echo SRM-420ES-LW - Gear Case and Shield - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ECP021041342 Available to backorder	Gear Case	£133.70 £111.42
2	EC90022004006 Available to backorder	Screw	£0.20 £0.17
3	EC61030056930 Available to backorder	Gear Set	£60.24 £50.20
4	EC61031056933 Available to backorder	P.T.O. Shaft	£39.74 £33.12
5	EC90081000629 Available to backorder	Ball Bearing	£13.76 £11.47
6	EC90081206201 Available to backorder	Ball Bearing	£8.92 £7.43
7	EC90080006001 Available to backorder	Ball Bearing	£7.56 £6.30
8	EC90080306001 Available to backorder	Ball Bearing	£7.60 £6.33
9	EC90070200032 Available to backorder	Retaining Ring	£1.40 £1.17
10	EC61044456830 Available to backorder	Washer	£1.76 £1.47
11	EC90070200028 In stock	Retaining Ring	£0.98 £0.82
12	EC90070100012 Available to backorder	Retaining Ring	£0.48 £0.40
13	ECV806000100 Available to backorder	Torx 6 Bolt	£2.30 £1.92
14	ECV452001310 Available to backorder	Torsion Spring	£5.90 £4.92
15	EC61043450031 Available to backorder	Bolt 8* 8	£2.92 £2.43
16	EC90060350008 Available to backorder	Washer	£0.20 £0.17
17	ECV805000130 Available to backorder	Torx 5 Bolt	£1.46 £1.22
18	ECP100009780 Available to backorder	Blade Fixture	£24.64 £20.53
19	ECC535000011 Available to backorder	Blade Fixture	£20.93 £17.44
20	EC61035256830 Available to backorder	Cup Plate	£6.96 £5.80
21	EC90072000012 Available to backorder	O-Ring	£1.18 £0.98
22	EC61031452130 In stock	Adapter (L) Plate	£15.46 £12.88
23	EC69922956830 In stock	Cover Plate	£7.82 £6.52
24	EC61032052130 In stock	Nut 10	£3.14 £2.62
25	ECP021050810 Available to backorder	Shield Blade Asy	£26.94 £22.45
26	EC90056500005 Available to backorder	Square Nut	£0.20 £0.17
27	ECV805000170 Available to backorder	Torx 5 Bolt	£1.46 £1.22
28	EC90056200005 Available to backorder	Lock Nut	£1.20 £1.00
29	ECC552000200 Available to backorder	Shield Plate	£3.02 £2.52
30	EC9131604010 Available to backorder	Screw	£0.30 £0.25
31	ECV805000260 Available to backorder	Torx 5 Bolt	£1.40 £1.17
32	ECC550000551 Available to backorder	Blade Shield	£17.64 £14.70
33	ECP021041320 Available to backorder	Blade Shield Asy	£37.34 £31.12
34	ECV263000020 Available to backorder	5 Nut	£0.98 £0.82
35	ECC554000030 In stock	Cord Knife	£13.44 £11.20
36	ECV805000150 Available to backorder	Torx 5 Bolt	£1.46 £1.22
