Echo SRM-3611T/U Gear Case and Shield

Name: Echo SRM-3611T/U Gear Case and Shield
SKU: srm_3611t_u_gear_case_and_shield-group
Price: 0.17 GBP
Availability: InStock

Part No. srm_3611t_u_gear_case_and_shield-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

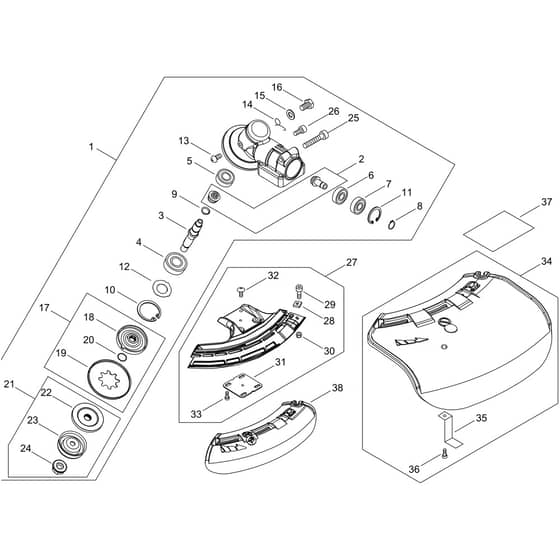

Echo SRM-3611T/U - Gear Case and Shield - Parts Diagram

	Part No.	Details
1	ECP100004840 Available to backorder	Gear Asy Case	£142.80 £119.00
2	ECV000000260 Available to backorder	Bevel Gear Set	£57.46 £47.88
3	ECC534001080 Available to backorder	Gear Shaft	£44.57 £37.14
4	EC90081206201 Available to backorder	Ball Bearing	£9.12 £7.60
5	EC90081000629 Available to backorder	Ball Bearing	£14.23 £11.86
6	EC90080000609 Available to backorder	Ball Bearing	£6.00 £5.00
7	EC90080300609 Available to backorder	Ball Bearing	£7.15 £5.96
8	EC90070100009 Available to backorder	Retaining Ring	£0.31 £0.26
9	EC90070600012 Available to backorder	Retaining Ring	£1.01 £0.84
10	EC90070200032 Available to backorder	Retaining Ring	£1.51 £1.26
11	EC90070200025 Available to backorder	Retaining Ring	£1.01 £0.84
12	ECV340000180 Available to backorder	Washer	£1.51 £1.26
13	EC90022004006 Available to backorder	Screw	£0.20 £0.17
14	ECV452001310 Available to backorder	Torsion Spring	£6.20 £5.17
15	EC90060350008 Available to backorder	Washer	£0.37 £0.31
16	EC61043450031 Available to backorder	Bolt 8* 8	£3.25 £2.71
17	ECP100009780 Available to backorder	Blade Set Fixture	£25.49 £21.24
18	ECC535000011 Available to backorder	Blade Fixture	£22.31 £18.59
19	EC61035256830 Available to backorder	Cup Plate	£7.20 £6.00
20	EC90072000012 Available to backorder	O-Ring	£1.01 £0.84
21	7877 In stock	Blade Fixture Kit	£28.84 £24.03
22	EC61031452130 In stock	Adapter (L) Plate	£16.57 £13.81
23	EC69922956830 In stock	Cover Plate	£8.39 £6.99
24	EC61032052130 In stock	Nut 10	£3.35 £2.79
25	ECV806000020 Available to backorder	Torx 6 Bolt	£1.51 £1.26
26	ECV805000130 Available to backorder	Torx 5 Bolt	£1.50 £1.25
27	ECP100010520 Available to backorder	Shield Asy	£39.85 £33.21
28	EC90056500005 Available to backorder	Square Nut	£0.31 £0.26
29	ECV805000170 Available to backorder	Torx 5 Bolt	£1.51 £1.26
30	EC90056200005 Available to backorder	Lock Nut	£1.20 £1.00
31	ECC552000200 Available to backorder	Shield Plate	£3.25 £2.71
32	EC9131604010 Available to backorder	Screw	£0.31 £0.26
33	ECV805000260 Available to backorder	Torx 5 Bolt	£1.51 £1.26
34	ECP021043982 Available to backorder	Blade Shield Asy	£39.85 £33.21
35	ECC554000002 In stock	Cord Knife	£14.75 £12.29
36	ECV805000150 Available to backorder	Torx 5 Bolt	£1.51 £1.26
37	ECX530000560 Available to backorder	Eye Catcher Label	£10.28 £8.57
38	ECC550000541 Available to backorder	Blade Shield	£18.85 £15.71
