Echo SRM-3611T/U Carburettor

Name: Echo SRM-3611T/U Carburettor
SKU: srm_3611t_u_carburettor-group
Price: 1.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

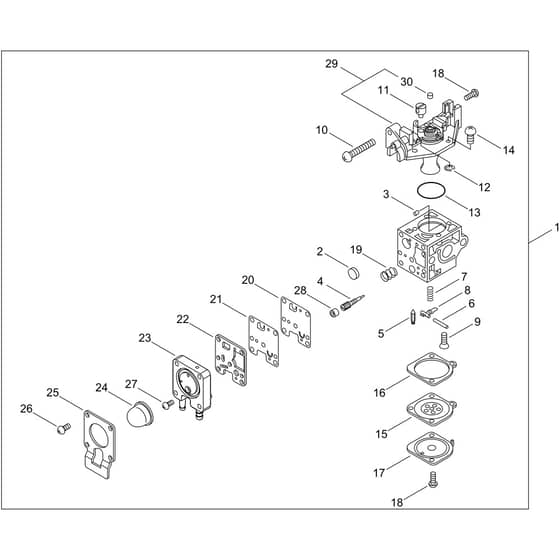

Echo SRM-3611T/U - Carburettor - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ECA021004820 Available to backorder	Diaphragm Carburetor	£111.44 £92.87
2	ECP005000010 Available to backorder	Strainer	£2.39 £1.99
3	ECP005001000 Available to backorder	Guide Roller	£2.76 £2.30
4	ECP005003950 Available to backorder	Main Mixture Screw	£8.56 £7.13
5	EC12533708260 Available to backorder	Inlet Needle Valve	£9.72 £8.10
6	EC12533813930 Available to backorder	Metering Arm Pin	£2.46 £2.05
7	EC12532213930 Available to backorder	Coil Spring	£2.30 £1.92
8	EC12532308260 Available to backorder	Valve Arm	£2.06 £1.72
9	EC12533942030 Available to backorder	Screw	£2.46 £2.05
10	ECP005000100 Available to backorder	Throttleadjust Screw	£10.36 £8.63
11	ECP005002090 Available to backorder	Post	£8.60 £7.17
12	ECP005000190 Available to backorder	E-Ring	£2.56 £2.13
13	ECP005004260 In stock	O-Ring	£6.22 £5.18
14	EC12534413931 Available to backorder	Screw	£2.26 £1.88
15	ECP005003760 Available to backorder	Metering Diaphragm	£17.00 £14.17
16	ECP005004700 Available to backorder	Metering Gasket	£6.74 £5.62
17	EC12534252130 Available to backorder	Diaphragm Cover	£8.66 £7.22
18	EC12534452130 Available to backorder	Screw	£2.06 £1.72
19	ECP005003960 Available to backorder	Pump Spring	£3.83 £3.19
20	ECP005003930 Available to backorder	Pump Diaphragm	£9.04 £7.53
21	ECP005003940 Available to backorder	Pump Diaphragm	£9.04 £7.53
22	ECP005004710 Available to backorder	Fuel Pump Gasket	£6.74 £5.62
23	ECP005004240 Available to backorder	Asy Primer Base	£30.50 £25.42
24	ECP005003110 Available to backorder	Primer Pump	£6.22 £5.18
25	ECP005000250 Available to backorder	Retainer	£4.84 £4.03
26	ECP005001900 Available to backorder	Screw	£2.00 £1.67
27	ECP005000270 Available to backorder	Screw	£2.12 £1.77
29	ECP005005050 Available to backorder	Rotor Kit Cover	£59.40 £49.50
30	ECP005001270 Available to backorder	Ajust Screw Plug	£2.12 £1.77
