Echo SRM-3611T/L Clutch

Echo SRM-3611T/L Clutch

Part No. srm_3611t_l_clutch-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo SRM-3611T/L Clutch

Echo SRM-3611T/L Clutch

Description

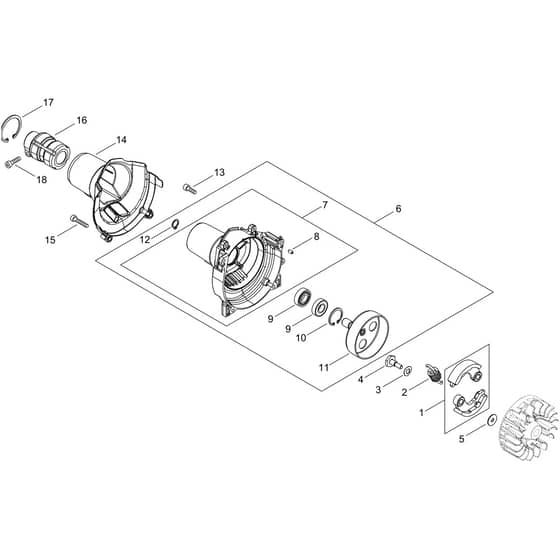

Echo SRM-3611T/L - Clutch - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ECP021046970 Available to backorder	Clutch Shoe Set		£39.85 £33.21
	2		ECA566000320 Available to backorder	Clutch Spring		£3.08 £2.57
	3		EC17504956030 Available to backorder	Washer		£2.20 £1.83
	4		ECA557000150 Available to backorder	Clutch Shaft		£4.01 £3.34
	5		EC17504805530 Available to backorder	Washer (I)		£2.20 £1.83
	6		ECP100004780 Available to backorder	Fan Cover Asy		£107.04 £89.20
	7		ECP100010620 Available to backorder	Fan Cover		£77.88 £64.90
	8		EC90033040080 Available to backorder	Roller		£0.64 £0.53
	9		EC9401846001 Available to backorder	Ball Bearing		£7.20 £6.00
	10		EC9241928000 Available to backorder	Retaining Ring		£1.14 £0.95
	11		ECA556001810 Available to backorder	Clutch Drum		£47.59 £39.66
	12		EC90070100012 Available to backorder	Retaining Ring		£0.49 £0.41
	13		ECV805000150 Available to backorder	Torx 5 Bolt		£1.51 £1.26
	14		ECA413000100 Available to backorder	Boot		£10.66 £8.88
	16		EC61092255931 Available to backorder	Main Pipe Fixture		£26.54 £22.12
	17		EC9242442000 Available to backorder	Retaining Ring		£1.39 £1.16
	18		ECV805000170 Available to backorder	Torx 5 Bolt		£1.51 £1.26

Description

Echo SRM-3611T/L - Clutch - Parts Diagram
