Echo SRM-2621TES/L Gear Case, Shield

Name: Echo SRM-2621TES/L Gear Case, Shield
SKU: srm_2621tes_l_gear_case_shield-group
Price: 0.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

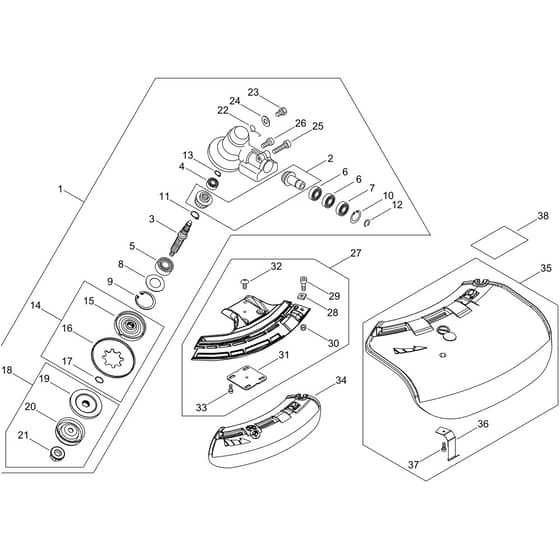

Echo SRM-2621TES/L - Gear Case, Shield - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ECP021051190 Available to backorder	Gear Case Asy	£157.44 £131.20
2	ECV000000110 Available to backorder	Bevel Gear Set	£53.88 £44.90
3	ECC534000940 Available to backorder	Gear Shaft	£38.09 £31.74
4	EC90081000629 Available to backorder	Ball Bearing	£13.76 £11.47
5	EC90081206302 Available to backorder	Ball Bearing	£11.74 £9.78
6	EC90085506900 Available to backorder	Ball Bearing	£11.10 £9.25
7	EC90085806900 Available to backorder	Ball Bearing	£8.38 £6.98
8	ECV313000090 Available to backorder	Circular 20 Washer	£0.98 £0.82
9	EC90070200042 Available to backorder	Retaining Ring	£1.52 £1.27
10	EC90070200022 Available to backorder	Retaining Ring	£0.86 £0.72
11	EC90070600012 Available to backorder	Retaining Ring	£0.92 £0.77
12	EC90070600010 Available to backorder	Retaining Ring	£0.86 £0.72
13	EC90070100009 Available to backorder	Retaining Ring	£0.31 £0.26
14	ECP100010910 Available to backorder	Blade Set Fixture	£29.16 £24.30
15	ECC535000930 In stock	Blade Fixture	£24.92 £20.77
16	EC61035256830 Available to backorder	Cup Plate	£6.96 £5.80
17	EC90072000012 Available to backorder	O-Ring	£1.18 £0.98
18	7877 In stock	Blade Fixture Kit	£27.89 £23.24
19	EC61031452130 In stock	Adapter (L) Plate	£15.46 £12.88
20	EC69922956830 In stock	Cover Plate	£7.82 £6.52
21	EC61032052130 In stock	Nut 10	£3.14 £2.62
22	ECV452001310 Available to backorder	Torsion Spring	£5.90 £4.92
23	EC61043450031 Available to backorder	Bolt 8* 8	£2.92 £2.43
24	EC90060350008 Available to backorder	Washer	£0.20 £0.17
25	ECV806000020 Available to backorder	Torx 6 Bolt	£1.40 £1.17
26	ECV805000130 Available to backorder	Torx 5 Bolt	£1.46 £1.22
27	ECP100010520 Available to backorder	Shield Asy	£38.54 £32.12
28	EC90056500005 Available to backorder	Square Nut	£0.20 £0.17
29	ECV805000170 Available to backorder	Torx 5 Bolt	£1.46 £1.22
30	EC90056200005 Available to backorder	Lock Nut	£1.20 £1.00
31	ECC552000200 Available to backorder	Shield Plate	£3.02 £2.52
32	EC9131604010 Available to backorder	Screw	£0.30 £0.25
33	ECV805000260 Available to backorder	Torx 5 Bolt	£1.40 £1.17
34	ECC550000541 Available to backorder	Blade Shield	£17.64 £14.70
35	ECP021042900 Available to backorder	Blade Shield Asy	£37.34 £31.12
36	ECC554000030 In stock	Cord Knife	£13.44 £11.20
37	ECV805000150 Available to backorder	Torx 5 Bolt	£1.46 £1.22
38	ECX530000580 Available to backorder	Eye Catcher Label	£3.34 £2.78
