Echo SRM-237TES/L Gear Case, Shield

Name: Echo SRM-237TES/L Gear Case, Shield
SKU: srm_237tes_l_gear_case_shield-group
Price: 0.17 GBP
Availability: InStock

Part No. srm_237tes_l_gear_case_shield-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

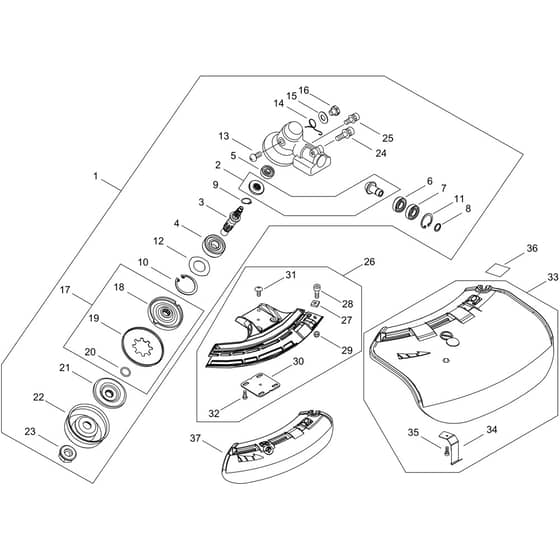

Echo SRM-237TES/L - Gear Case, Shield - Parts Diagram

	Part No.	Details
1	ECP021049070 Available to backorder	Gear Case Asy	£157.68 £131.40
2	ECV000000230 Available to backorder	Bevel Gear Set	£60.48 £50.40
3	ECC534001080 Available to backorder	Gear Shaft	£44.57 £37.14
4	EC90081206201 Available to backorder	Ball Bearing	£9.12 £7.60
5	EC9411000629 Available to backorder	Ball Bearing	£6.77 £5.64
6	EC9411000609 Available to backorder	Ball Bearing	£5.32 £4.43
7	EC9411100609 Available to backorder	Ball Bearing	£5.32 £4.43
8	EC90070100009 Available to backorder	Retaining Ring	£0.31 £0.26
9	EC90070600012 Available to backorder	Retaining Ring	£1.01 £0.84
10	EC90070200032 Available to backorder	Retaining Ring	£1.51 £1.26
11	EC90070200025 Available to backorder	Retaining Ring	£1.01 £0.84
12	ECV340000180 Available to backorder	Washer	£1.51 £1.26
13	EC90022004006 Available to backorder	Screw	£0.20 £0.17
14	ECV452001310 Available to backorder	Torsion Spring	£6.20 £5.17
15	EC90060350008 Available to backorder	Washer	£0.37 £0.31
16	EC61043450031 Available to backorder	Bolt 8* 8	£3.25 £2.71
17	ECP100009780 Available to backorder	Blade Fixture	£25.49 £21.24
18	ECC535000011 Available to backorder	Blade Fixture	£22.31 £18.59
19	EC61035256830 Available to backorder	Cup Plate	£7.20 £6.00
20	EC90072000012 Available to backorder	O-Ring	£1.01 £0.84
21	EC61031452130 In stock	Adapter (L) Plate	£16.57 £13.81
22	EC69922956830 In stock	Cover Plate	£8.39 £6.99
23	EC61032052130 In stock	Nut 10	£3.35 £2.79
24	ECV806000020 Available to backorder	Torx 6 Bolt	£1.51 £1.26
25	ECV805000140 Available to backorder	Torx 5 Bolt	£1.50 £1.25
26	ECP100010520 Available to backorder	Shield Asy	£39.85 £33.21
27	EC90056500005 Available to backorder	Square Nut	£0.31 £0.26
28	ECV805000170 Available to backorder	Torx 5 Bolt	£1.51 £1.26
29	EC90056200005 Available to backorder	Lock Nut	£1.20 £1.00
30	ECC552000200 Available to backorder	Shield Plate	£3.25 £2.71
31	EC9131604010 Available to backorder	Screw	£0.31 £0.26
32	ECV805000260 Available to backorder	Torx 5 Bolt	£1.51 £1.26
33	ECP021042900 Available to backorder	Blade Shield Asy	£39.85 £33.21
34	ECC554000030 In stock	Cord Knife	£14.41 £12.01
35	ECV805000150 Available to backorder	Torx 5 Bolt	£1.51 £1.26
36	ECX530000580 Available to backorder	Eye Catcher Label	£3.46 £2.88
37	ECC550000541 Available to backorder	Blade Shield	£18.85 £15.71
