SRC 550 RB - 2014-2022 - 212501022/14 - Stiga Tiller Transmission Diagram

Description

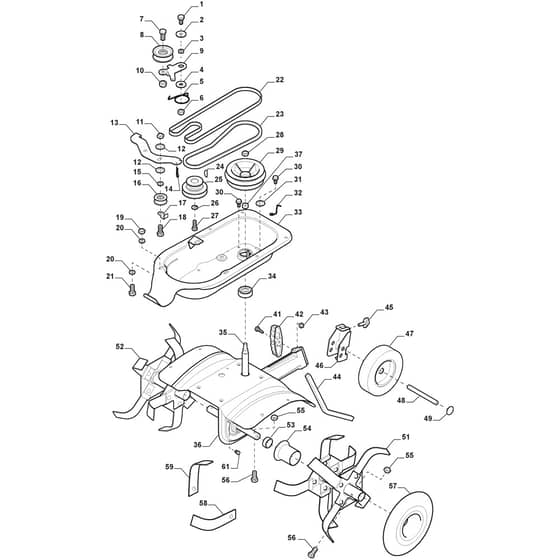

Stiga SRC 550 RB Parts Diagram

Product Name - SRC 550 RB

Model Year - 2014-2022

Model Type - Z2

Art.N - 212501022/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-1020-16 Available to backorder	Screw	£2.12 £1.77
2	MO9699-0105-02 Available to backorder	Washer	£1.55 £1.29
5	MO1483-2033-01 Available to backorder	Spring	£5.21 £4.34
6	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
8	MO1483-2004-01 Available to backorder	Pulley	£26.60 £22.17
10	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
11	MO112295200/0 In stock	Nut	£1.40 £1.17
14	MO9599-0052-02 Available to backorder	Cotter Pin	£1.40 £1.17
16	MO1483-2003-01 Available to backorder	Roll	£27.02 £22.52
18	MO9997-1025-16 Available to backorder	Screw	£1.75 £1.46
20	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
22	MO1483-2036-01 Available to backorder	Belt	£43.69 £36.41
23	MO1483-2034-01 Available to backorder	Belt	£15.02 £12.52
24	MO112139100/0 In stock	Key	£1.55 £1.29
25	MO1483-2065-01 Available to backorder	Pulley	£61.93 £51.61
26	MO112521360/0 In stock	Washer	£1.55 £1.29
27	MO9987-5225-16 Available to backorder	Screw	£1.97 £1.64
28	MO112295300/0 Available to backorder	Nut	£1.55 £1.29
29	MO1483-2025-01 Available to backorder	Pulley	£45.26 £37.72
30	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
31	MO9699-0122-02 Available to backorder	Washer	£1.55 £1.29
32	MO118803000/0 Available to backorder	Cable Holder	£6.20 £5.17
34	MO1483-2071-01 Available to backorder	Ball Bearing	£24.19 £20.16
35	MO1483-2011-01 Available to backorder	Screw	£73.20 £61.00
36	MO118803002/0 Available to backorder	Gear Housing-Grey	£452.68 £377.23
41	MO112793301/0 In stock	Screw	£1.55 £1.29
44	MO1483-2063-01 Available to backorder	Lever	£27.59 £22.99
45	MO1483-2077-01 Available to backorder	Screw	£10.56 £8.80
46	MO1483-2056-01 Available to backorder	Support	£18.02 £15.02
47	MO1483-2058-01 Available to backorder	Wheel	£12.25 £10.21
48	MO1483-2057-01 Available to backorder	Axle. Wheels	£9.00 £7.50
49	MO1483-2074-01 Available to backorder	Fastener	£1.55 £1.29
51	MO118803009/0 Available to backorder	Rotor Assy-Lh	£60.83 £50.69
52	MO118803010/0 Available to backorder	Rotor Assy-Rh	£60.83 £50.69
53	MO1483-2069-01 Available to backorder	Oil Seal	£8.87 £7.39
54	MO1483-2012-01 Available to backorder	Dust Cover	£4.93 £4.11
55	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
56	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
57	MO118803011/0 Available to backorder	Side Disc	£32.38 £26.98
58	MO1483-2013-01 Available to backorder	Right Tine	£7.57 £6.31
59	MO1483-2014-01 Available to backorder	Left Tine	£7.57 £6.31
61	MO1483-2075-01 Available to backorder	Cap	£3.67 £3.06
