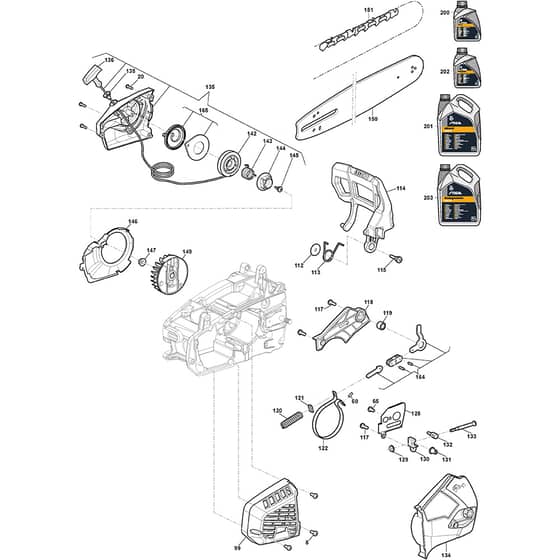

SPR 276 C - 2017-2018 - 240271012/S17 - Stiga Chainsaw Housing 02 Diagram

Name: SPR 276 C - 2017-2018 - 240271012/S17 - Stiga Chainsaw Housing 02 Diagram
SKU: spr_276_c_240271012_s17_housing_02-group
Price: 1.11 GBP
Availability: InStock

Part No. spr_276_c_240271012_s17_housing_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SPR 276 C - 2017-2018 - 240271012/S17 - Stiga Chainsaw Housing 02 Diagram

Description

Stiga SPR 276 C Parts Diagram

Product Name - SPR 276 C

Model Year - 2017-2018

Model Type - SPR 276 C

Art.N - 240271012/S17

Engine Model -

	Part No.	Details
20	MO112728124/0 Available to backorder	Screw	£1.63 £1.36
60	MO123753000/0 Available to backorder	Needle	£1.55 £1.29
65	MO112727815/0 Available to backorder	Screw	£1.39 £1.16
99	MO118804748/0 Available to backorder	Muffler Cover. Yellow	£4.08 £3.40
112	MO118804806/0 Available to backorder	Washer	£1.55 £1.29
113	MO118804755/0 Available to backorder	Spring For Hand Guard	£1.70 £1.42
114	MO118804798/0 Available to backorder	Hand Guard	£13.50 £11.25
115	MO118804757/0 Available to backorder	Hand Guard Screw	£1.39 £1.16
117	MO123878121/0 Available to backorder	Screw	£1.79 £1.49
118	MO118804759/0 Available to backorder	Break Spring Cover	£3.10 £2.58
119	MO118804760/0 Available to backorder	Bushing	£1.33 £1.11
120	MO118804761/0 Available to backorder	Chain Brake Spring	£1.39 £1.16
121	MO118804762/0 Available to backorder	Spring Base	£1.33 £1.11
122	MO118804763/0 Available to backorder	Break Strap	£3.92 £3.27
128	MO118804764/0 Available to backorder	Tensioner Cover Plate	£2.94 £2.45
129	MO118804765/0 Available to backorder	Passive Tensioner Gear	£2.94 £2.45
130	MO118804766/0 Available to backorder	Gear Base	£1.33 £1.11
131	MO118804767/0 Available to backorder	Tensioner Gear	£3.10 £2.58
132	MO118804768/0 Available to backorder	Chain Tensioner Block	£2.82 £2.35
133	MO118804769/0 Available to backorder	Tensioner Screw	£1.84 £1.53
134	MO118804770/0 In stock	Clutch Cover. Yellow	£20.69 £17.24
135	MO118804771/0 Available to backorder	Starter Assy. Yellow Rope 2.6x840mm	£38.00 £31.67
136	MO118804772/0 Available to backorder	Starter Handle	£3.25 £2.71
138	MO118804773/0 Available to backorder	Grommet	£2.24 £1.87
142	MO118804775/0 Available to backorder	Starter Pulley	£3.25 £2.71
143	MO118804776/0 Available to backorder	Spring	£2.94 £2.45
144	MO118804777/0 Available to backorder	Starter Ratchet	£2.94 £2.45
145	MO118804807/0 Available to backorder	Screw	£2.94 £2.45
146	MO118804778/0 Available to backorder	Air Conveyor	£2.40 £2.00
147	MO123120008/0 Available to backorder	Nut	£1.70 £1.42
149	MO118804779/0 Available to backorder	Flywheel Assy	£29.63 £24.69
150	MO118804663/0 Available to backorder	Guide Bar 10"-1.4"-0.050"	£23.95 £19.96
203	MO1111-9247-01 Available to backorder	Chain Oil Biodegradable 5Lt	£50.96 £42.47
