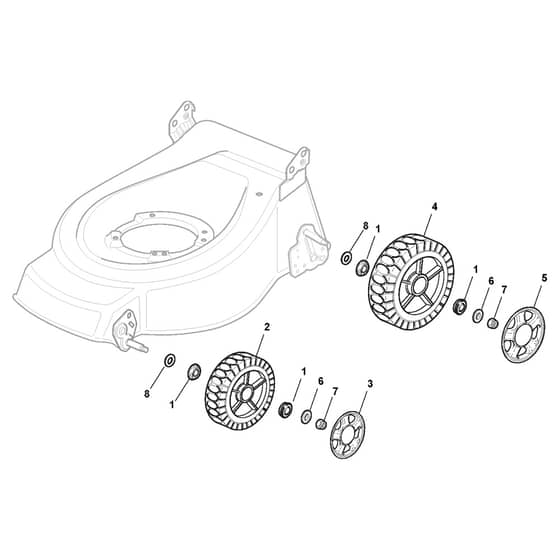

SPL 484 TR-BM - 2011-2012 - 294482023/HAN - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Name: SPL 484 TR-BM - 2011-2012 - 294482023/HAN - Castel Garden Rotary Mower Wheels and Hub Caps Diagram
SKU: spl_484_tr_bm_294482023_han_wheels_and_hub_caps-group
Price: 1.16 GBP
Availability: InStock

Part No. spl_484_tr_bm_294482023_han_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SPL 484 TR-BM - 2011-2012 - 294482023/HAN - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

Castel Garden SPL 484 TR-BM Parts Diagram

Product Name - SPL 484 TR-BM

Model Year - 2011-2012

Model Type - SPL 484 TR

Art.N - 294482023/HAN

Engine Model -

	Part No.	Details
1	MO122122206/0 In stock	Bearing	£1.84 £1.53
2	MO381007336/0 Available to backorder	Wheel. Knobbly Ø 170	£17.60 £14.67
3	MO322110381/0 Available to backorder	Hub Cap Grey Grey	£3.38 £2.82
4	MO381007337/0 In stock	Wheel. Knobbly Ø 210	£16.61 £13.84
5	MO322110636/0 In stock	Hub Cap Grey Grey	£2.53 £2.11
6	MO112523060/0 In stock	Washer	£1.55 £1.29
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO112530150/0 In stock	Spring Washer M12	£1.39 £1.16
