SPARTA 441 S - Oleo-Mac Brushcutter Transmission Diagram

Description

Oleo-Mac SPARTA 441 S Parts Diagram

	Part No.	Details
1	EF61250287A Available to backorder	Bevel Gear Ø28	£143.76 £119.80
2	EF3025019 Available to backorder	Ring	£1.08 £0.90
3	EF3024012R In stock	Seeger	£1.54 £1.28
4	EF3034019R Available to backorder	Bearing	£5.16 £4.30
5	EF4138311A Available to backorder	Washer	£1.08 £0.90
6	EF3025009 Available to backorder	Seeger	£1.08 £0.90
7	EF3901016 Available to backorder	Screw	£1.08 £0.90
8	EF61040071R Available to backorder	Oil Cap	£3.84 £3.20
9	EF61040144R Available to backorder	Gear Case	£48.12 £40.10
10	EF3034218R Available to backorder	Bearing	£13.68 £11.40
11	EF61250054R Available to backorder	Pin	£17.52 £14.60
12	EF3034012R Available to backorder	Bearing	£15.96 £13.30
13	EF3025022R Available to backorder	Seeger	£1.08 £0.90
14	EF61040066R Available to backorder	Spacer	£9.00 £7.50
15	EF3050018R Available to backorder	Seal Ring	£9.00 £7.50
16	EF61040145R Available to backorder	Hub	£24.24 £20.20
17	EF4179089R Available to backorder	Flange	£9.00 £7.50
19	EF61110075R Available to backorder	Self-Locking Nut	£9.00 £7.50
20	EF3035023R Available to backorder	Bearing	£16.44 £13.70
21	EF61040133A Available to backorder	Bevel Gear	£90.96 £75.80
22	EF3901008R Available to backorder	Screw	£1.08 £0.90
23	EF61202109R Available to backorder	Shaft	£29.76 £24.80
24	EF61252049R Available to backorder	Tube Ø28	£87.00 £72.50
25	EF3918010R Available to backorder	Washer	£1.98 £1.65
27	EF3801017R Available to backorder	Screw	£1.08 £0.90
28	EF3819006R Available to backorder	Washer	£1.58 £1.32
29	EF3801015R Available to backorder	Screw	£2.03 £1.69
30	EF3914003R Available to backorder	Self-Locking Nut	£1.15 £0.96
32	EF61380059R Available to backorder	Throttle Cable	£5.76 £4.80
36	EF4100098B Available to backorder	Spring	£1.08 £0.90
37	EF3893016AR Available to backorder	Screw	£2.24 £1.87
39	EF61380056R Available to backorder	Throttle Lever	£3.72 £3.10
40	EF61380096 Available to backorder	Button Kit	£6.84 £5.70

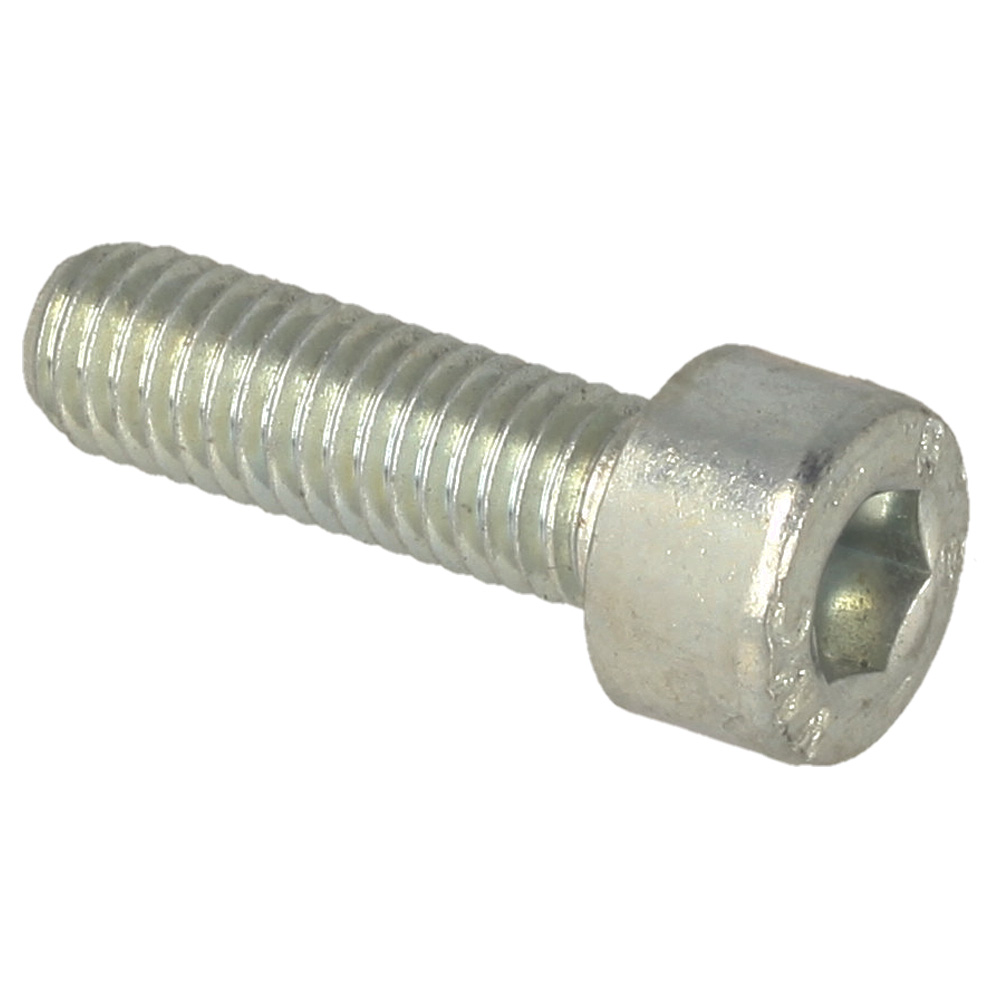

41	EF3801011R Available to backorder	Screw	£2.66 £2.22
42	EF61040055 Available to backorder	Band	£2.00 £1.67
43	EF61042026R Available to backorder	Guard	£12.60 £10.50
44	EF61042039R Available to backorder	Handle & Clamp-28Dia	£36.36 £30.30
