SPARTA 441 BP - Oleo-Mac Brushcutter Frame - Accessories Diagram

Description

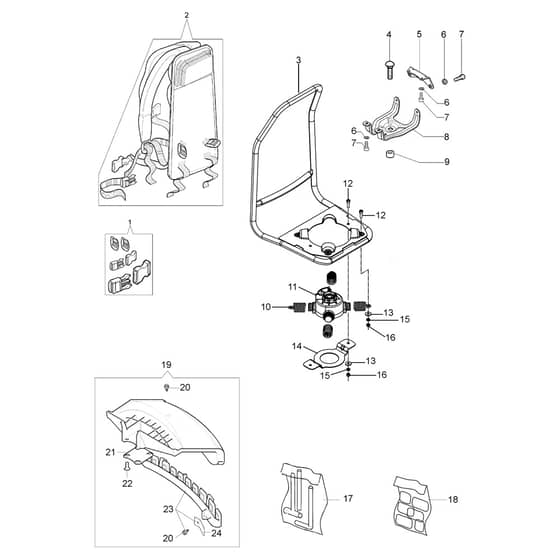

Oleo-Mac SPARTA 441 BP Parts Diagram

	Part No.	Details
1	EF62022030 Available to backorder	Buckle Set	£16.92 £14.10
4	EF3910024 Available to backorder	Screw	£3.01 £2.51
6	EF3819006R Available to backorder	Washer	£1.58 £1.32
7	EF3801013R Available to backorder	Screw	£1.61 £1.34
9	EF62030020 Available to backorder	Spacer	£3.01 £2.51

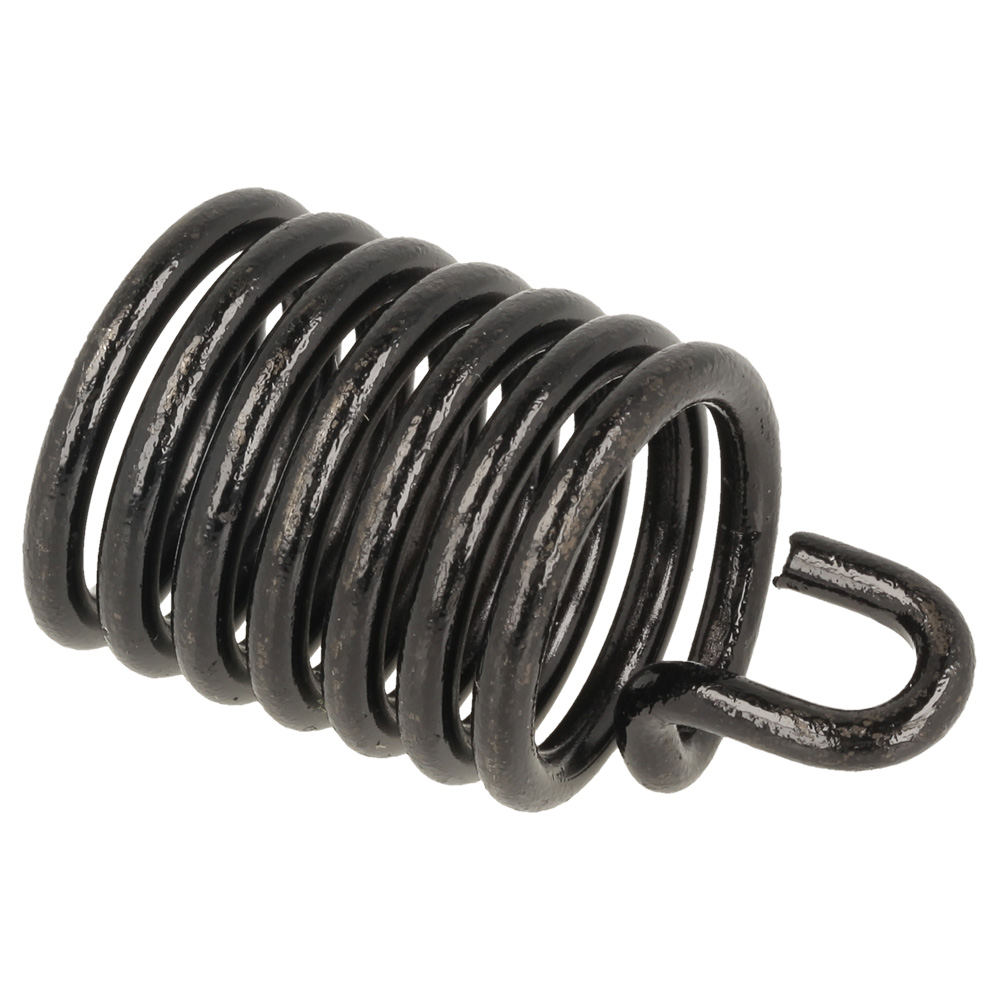

10	EF58040079AR Available to backorder	Spring	£2.00 £1.67
11	EF62030067 Available to backorder	Hub	£9.00 £7.50
12	EF3801011R Available to backorder	Screw	£2.66 £2.22
13	EF3918005R Available to backorder	Washer	£2.66 £2.22
15	EF3918006 Available to backorder	Washer	£1.08 £0.90
16	EF3914003R Available to backorder	Self-Locking Nut	£1.15 £0.96
17	EF61012010 Available to backorder	Tool Kit	£15.96 £13.30
19	EF61280332 Available to backorder	Guard Kit	£37.80 £31.50
20	EF3960040R Available to backorder	Screw	£1.34 £1.12
21	EF4174278R Available to backorder	Plate	£3.84 £3.20
22	EF3802004DR Available to backorder	Screw	£2.00 £1.67
23	EF61330252 Available to backorder	Skirt W.Blade	£11.28 £9.40
24	EF4174275R Available to backorder	Blade	£3.01 £2.51
