SPARTA 250 TR - Oleo-Mac Brushcutter Transmission Diagram

Description

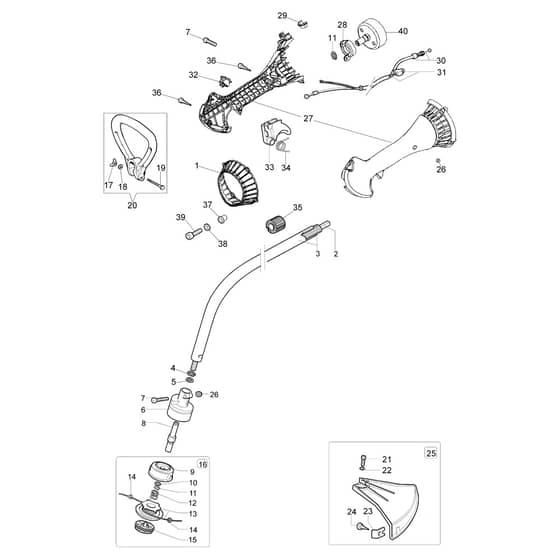

Oleo-Mac SPARTA 250 TR Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF61160009 In stock	Grid	£8.74 £7.28
2	EF61150020AR Available to backorder	Drive Shaft	£14.60 £12.17
3	EF60012004R Available to backorder	Tube Ø22	£90.08 £75.07
4	EF3024010R Available to backorder	Snap Ring	£0.90 £0.75
5	EF004400285 Available to backorder	Washer	£2.76 £2.30
6	EF60012002R Available to backorder	Hub	£25.00 £20.83
7	EF3979017 Available to backorder	Screw	£0.90 £0.75
8	EF071000005 Available to backorder	Pin	£39.78 £33.15
9	EF070000192A Available to backorder	Cover	£10.24 £8.53
10	EF3064004AR Available to backorder	Washer	£1.84 £1.53
11	EF3024012R In stock	Seeger	£1.28 £1.07
12	EF071000010AR Available to backorder	Spring	£1.84 £1.53
13	EF61062006R Available to backorder	Nylon Spool	£16.86 £14.05
14	EF070000193 Available to backorder	Bushing	£0.80 £0.67
15	EF071000006BR Available to backorder	Knob	£9.54 £7.95
16	EF61062023A Available to backorder	Nylon Head Ø2	£20.28 £16.90
17	EF3915006 Available to backorder	Nut	£0.90 £0.75
18	EF3916006R Available to backorder	Washer	£0.90 £0.75
19	EF3906053 Available to backorder	Screw	£0.90 £0.75
20	EF4162042A Available to backorder	Handle	£14.84 £12.37
21	EF3801010R Available to backorder	Screw	£1.14 £0.95
22	EF3916005R Available to backorder	Washer	£1.32 £1.10
23	EF4174275R Available to backorder	Blade	£2.76 £2.30
24	EF3960014 Available to backorder	Screw	£0.90 £0.75
25	EF61062012 Available to backorder	Guard Assy	£22.56 £18.80
26	EF3914003R Available to backorder	Self-Locking Nut	£0.96 £0.80
27	EF61162026 Available to backorder	Complete Handle	£22.06 £18.38
28	EF61160015 Available to backorder	Flange	£25.36 £21.13
29	EF61160008 Available to backorder	Bushing	£1.84 £1.53
30	EF61130006R Available to backorder	Throttle Cable	£9.44 £7.87
31	EF4162267A Available to backorder	Cable	£10.66 £8.88
32	EF2317021R Available to backorder	Switch	£9.54 £7.95
33	EF61060003A Available to backorder	Throttle Lever	£2.76 £2.30
34	EF61060007 Available to backorder	Spring	£0.90 £0.75
35	EF61150034AR Available to backorder	Spacer	£3.68 £3.07
36	EF3960069AR Available to backorder	Screw	£0.90 £0.75
37	EF61160005 Available to backorder	Bushing	£3.68 £3.07
38	EF3918010R Available to backorder	Washer	£1.82 £1.52
39	EF4175074R Available to backorder	Screw	£0.90 £0.75
40	EF61160007R Available to backorder	Clutch Drum	£30.04 £25.03
