SPARTA 250 S - Oleo-Mac Brushcutter Transmission Diagram

Description

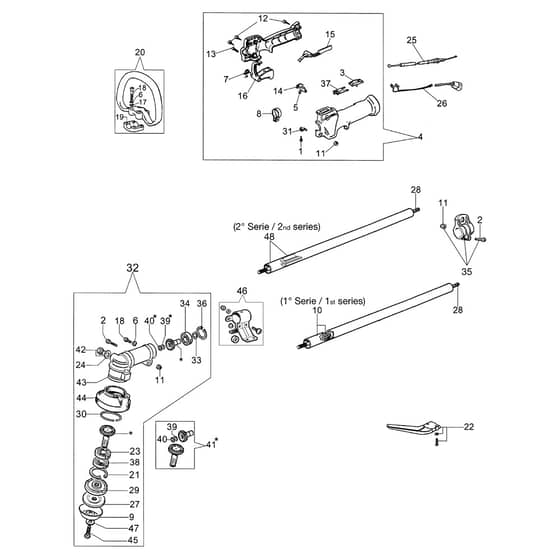

Oleo-Mac SPARTA 250 S Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF3806035R Available to backorder	Screw	£0.90 £0.75
2	EF3801015R Available to backorder	Screw	£1.86 £1.55
3	EF61040051 Available to backorder	Slide Control	£2.76 £2.30
4	EF61012006AR Available to backorder	Handle	£27.98 £23.32
5	EF61040052 Available to backorder	Pawl	£0.90 £0.75
6	EF3819006R Available to backorder	Washer	£1.32 £1.10
7	EF61040056R Available to backorder	Spring	£0.90 £0.75
8	EF61010019 Available to backorder	Band	£1.84 £1.53
9	EF4100456R In stock	Guard	£9.54 £7.95
11	EF3914003R Available to backorder	Self-Locking Nut	£0.96 £0.80
12	EF3960067AR Available to backorder	Screw	£0.90 £0.75
13	EF3801011R Available to backorder	Screw	£2.44 £2.03
14	EF61040057R Available to backorder	Spring	£1.92 £1.60
15	EF61040050AR Available to backorder	Lever	£2.76 £2.30
16	EF61040049 Available to backorder	Throttle Lever	£2.76 £2.30
17	EF3918010R Available to backorder	Washer	£1.82 £1.52
18	EF3801017R Available to backorder	Screw	£0.90 £0.75
19	EF61010024 Available to backorder	Clamp	£8.74 £7.28
20	EF61032012R Available to backorder	Handle	£35.12 £29.27
21	EF3025021 Available to backorder	Ring	£0.90 £0.75
22	EF61042026R Available to backorder	Guard	£12.16 £10.13
23	EF094000006R Available to backorder	Bearing	£16.80 £14.00
24	EF4179141R Available to backorder	Washer	£0.90 £0.75
25	EF61040058 Available to backorder	Throttle Cable	£17.72 £14.77
26	EF61010023AR Available to backorder	Cable	£11.22 £9.35
27	EF4160005R Available to backorder	Flange	£8.74 £7.28
28	EF62030042R Available to backorder	Drive Shaft	£26.76 £22.30
29	EF4160004B Available to backorder	Flange	£7.70 £6.42
30	EF4162178 Available to backorder	Spring	£0.90 £0.75
31	EF61040054R Available to backorder	Plate	£0.90 £0.75
32	EF4160012AR Available to backorder	Bevel Gear Ø26	£153.24 £127.70
33	EF3024010R Available to backorder	Snap Ring	£0.98 £0.82
34	EF3035005R Available to backorder	Bearing	£12.76 £10.63
35	EF4161619AR Available to backorder	Band	£8.74 £7.28
36	EF3025018R Available to backorder	Seeger	£1.84 £1.53
37	EF61040053R Available to backorder	Plate	£3.58 £2.98
38	EF3035012R Available to backorder	Bearing	£13.26 £11.05
39	EF4138311A Available to backorder	Washer	£0.90 £0.75
40	EF3025009 Available to backorder	Seeger	£0.90 £0.75
41	EF4160139 Available to backorder	Bevel Gear Set	£86.66 £72.22
42	EF4138428 Available to backorder	Cap	£5.44 £4.53
43	EF4160338R Available to backorder	Gear Case	£29.52 £24.60
44	EF4162177A Available to backorder	Guard	£3.24 £2.70
45	EF3806069R Available to backorder	Screw	£1.84 £1.53
46	EF4160236R Available to backorder	Band	£18.36 £15.30
47	EF3916008R Available to backorder	Washer	£1.82 £1.52
48	EF4160011R Available to backorder	Tube Complete 26mm Dia	£107.88 £89.90
