SPARTA 25 - Oleo-Mac Brushcutter Tank and air filter Diagram

Description

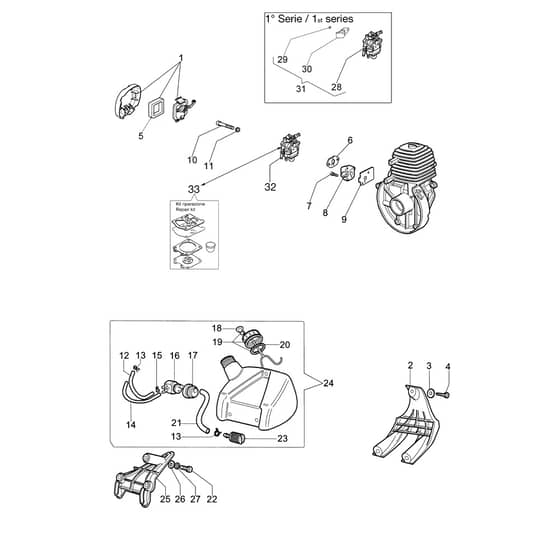

Oleo-Mac SPARTA 25 Parts Diagram

	Part No.	Details
1	EF61162017A In stock	Air Filter Kit	£6.59 £5.49
2	EF61010004 Available to backorder	Stand	£9.00 £7.50
3	EF3918010R Available to backorder	Washer	£1.98 £1.65
4	EF3960115R Available to backorder	Screw	£1.08 £0.90
5	EF61160014AR In stock	Air Filter	£3.13 £2.61
6	EF4161438 Available to backorder	Gasket	£1.63 £1.36
7	EF3801051R Available to backorder	Screw	£1.08 £0.90
8	EF4162256BR Available to backorder	Insulator	£22.80 £19.00
9	EF61030112BR Available to backorder	Gasket	£5.64 £4.70
10	EF3801012 Available to backorder	Screw	£1.08 £0.90
11	EF3833073R Available to backorder	Washer	£1.08 £0.90
12	EF4162297R Available to backorder	Tube	£3.01 £2.51
13	EF4098377R Available to backorder	Band	£2.00 £1.67
14	EF4162316R In stock	Tube	£2.09 £1.74
15	EF3059002 Available to backorder	Band	£1.08 £0.90
16	EF4162270AR Available to backorder	Fittings	£5.64 £4.70
17	EF4162268R In stock	Bushing	£5.84 £4.87
18	EF4098658AR Available to backorder	Breather Valve	£9.00 £7.50
19	EF4151258R In stock	Complete Cap	£14.16 £11.80
20	EF4100308AR Available to backorder	Gasket	£2.00 £1.67
22	EF3801010R Available to backorder	Screw	£1.37 £1.14
23	EF61370639R In stock	Fuel Filter	£8.83 £7.36
24	EF61032026AR Available to backorder	Complete Tank	£48.72 £40.60
25	EF61010002 Available to backorder	Support	£15.12 £12.60
26	EF3918005R Available to backorder	Washer	£2.66 £2.22
27	EF3819006R Available to backorder	Washer	£1.58 £1.32
29	EF3049040 Available to backorder	O-Ring	£1.08 £0.90
30	EF61150025R Available to backorder	Bracket	£2.00 £1.67
31	EF61010030B Available to backorder	Carburetor Kit	£103.68 £86.40
32	EF2318394R Available to backorder	Carburetor SN 9022521830	£119.04 £99.20

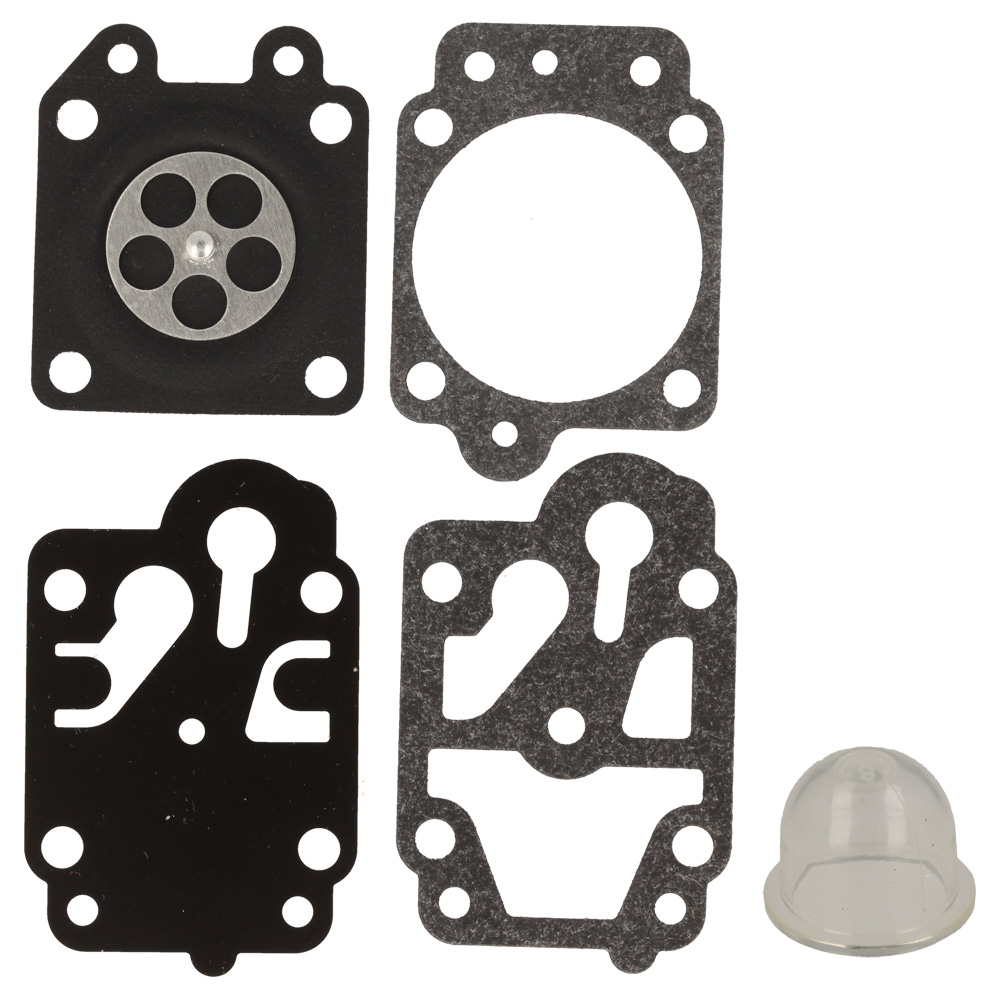

33	EF2318395R Available to backorder	Gasket Kit	£9.84 £8.20
