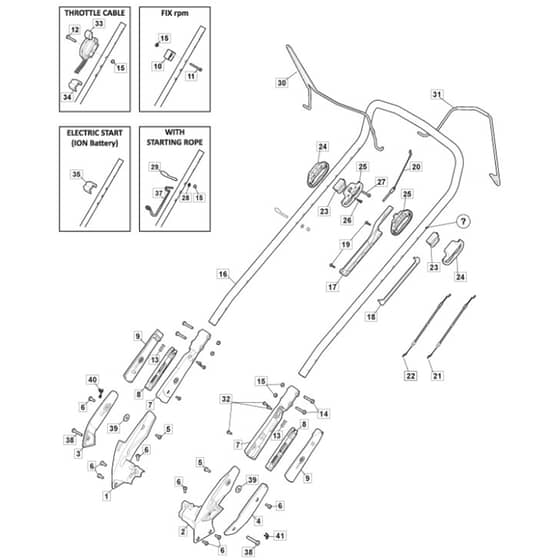

SP555 V - 2022 - 294563033/M22 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2022

Model Type - MP2 554 SV

Art.N - 294563033/M22

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	MO381005219/1 In stock	Right Bracket	£35.20 £29.33
2	MO381005221/1 Available to backorder	Left Bracket	£38.00 £31.67
3	MO381005239/0 Available to backorder	Cover. Right	£16.34 £13.62
4	MO381005241/0 Available to backorder	Cover. Left	£16.34 £13.62
5	MO122517885/0 Available to backorder	Pin	£3.25 £2.71
6	MO112735664/0 In stock	Screw	£1.39 £1.16
7	MO381005243/0 In stock	External Guide	£23.65 £19.71
8	MO322246106/0 Available to backorder	Cursor	£12.94 £10.78
9	MO381005245/0 Available to backorder	Internal Guide	£16.19 £13.49
10	MO322551684/0 Available to backorder	Cable Holder Ø25	£8.86 £7.38
11	MO112727784/0 Available to backorder	Screw for FIX rpm	£1.39 £1.16
12	MO112727786/0 Available to backorder	Screw for Throttle Cable	£1.97 £1.64
13	MO125430202/1 Available to backorder	Spring	£1.70 £1.42
14	MO112727799/0 Available to backorder	Screw	£1.84 £1.53
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO381007595/1 Available to backorder	Handle. Upper Part	£85.87 £71.56
17	MO322806652/0 Available to backorder	Internal Support. Black	£6.46 £5.38
18	MO322806653/0 Available to backorder	External Support. Black	£5.06 £4.22
19	MO112728713/0 Available to backorder	Screw	£1.46 £1.22
20	MO381030123/0 Available to backorder	Cable Com. Cursor. Assy	£10.08 £8.40
21	MO381030118/0 In stock	Clutch Cable	£20.14 £16.78
22	MO181030070/0 In stock	Cable	£15.62 £13.02
23	MO322394544/0 Available to backorder	Lever. Black	£2.94 £2.45
24	MO322722839/0 Available to backorder	External Protection. Black	£3.52 £2.93
25	MO322722838/0 Available to backorder	Internal Protection. Black	£3.52 £2.93
26	MO112728696/0 Available to backorder	Screw	£1.63 £1.36
27	MO112728705/0 Available to backorder	Screw	£2.69 £2.24
28	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
29	MO122430313/0 In stock	Guide Spring For models without electric start	£3.92 £3.27
30	MO181003437/0 Available to backorder	Lever. Engine Brake Black	£40.62 £33.85
31	MO181003438/1 Available to backorder	Drive Control Lever. Black	£33.79 £28.16
32	MO112735651/0 Available to backorder	Screw	£1.55 £1.29
33	MO181005541/0 In stock	Throttle Cable	£27.89 £23.24
35	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
37	MO122430318/0 In stock	Guide Spring For models without electric start	£11.70 £9.75
38	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
39	MO9694-0001-00 Available to backorder	Washer	£1.63 £1.36
40	MO122430323/0 Available to backorder	Spring	£2.69 £2.24
