SP555 V - 2020 - 294563038/M20 - Mountfield Rotary Mower Crankcase Diagram

Description

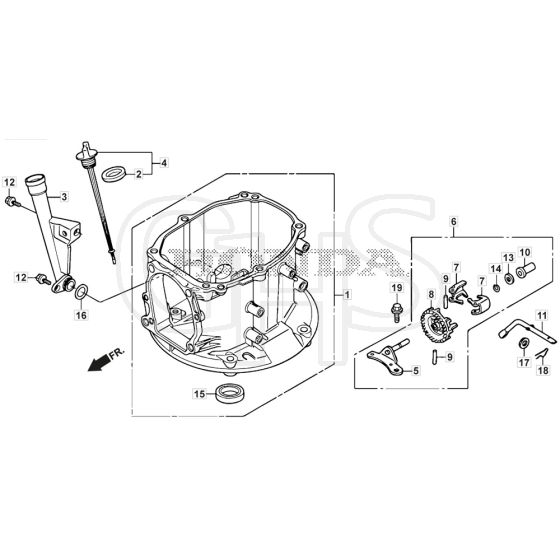

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2020

Model Type - MP2 554 SV

Art.N - 294563038/M20

Engine Model - GCVx200 OHV Autochoke

	Part No.	Details
1	HP11100-Z9L-415 Available to backorder	Crankcase Assy.	£294.72 £245.60
2	HP15625-ZE6-000 Available to backorder	Packing. Oil Filler Cap	£3.59 £2.99
3	HP15631-Z9L-000 Available to backorder	Extension. Oil Filler	£19.26 £16.05
4	HP15650-Z9L-000 Available to backorder	Gauge Assy. Oil Level	£15.80 £13.17
5	HP16508-ZM0-010 Available to backorder	Shaft Comp. Governor Holder	£6.96 £5.80
6	HP16510-ZM0-010 Available to backorder	Governor Assy.	£22.02 £18.35
7	HP16511-ZL8-000 Available to backorder	Weight. Governor	£1.76 £1.47
8	HP16512-ZM0-000 Available to backorder	Holder. Governor Weight	£7.01 £5.84
9	HP16513-ZE1-000 Available to backorder	Pin. Governor Weight	£1.98 £1.65
10	HP16531-Z1T-000 Available to backorder	Slider. Governor	£4.01 £3.34
11	HP16541-Z9L-000 Available to backorder	Shaft. Governor Arm	£4.45 £3.71
12	HP90013-ZL8-000 In stock	Bolt. Flange. 6X14 (Ct200)	Was £1.73 £1.44 Special Price £1.03 £0.86
13	HP90451-Z1T-000 Available to backorder	Washer. Thrust. 6mm	£1.73 £1.44
14	HP90602-ZE1-000 Available to backorder	Clip. Governor Holder	£3.73 £3.11
15	HP91202-Z9L-003 In stock	Oil Seal. 28X41.25X6	£13.32 £11.10
16	HP91301-Z9L-000 Available to backorder	O-Ring. 19.1X2.2	£1.78 £1.48
17	HP94101-06800 Available to backorder	Washer. Plain. 6mm	£1.03 £0.86
18	HP94251-08000 In stock	Pin. Lock. 8mm	£1.84 £1.53
