SP555 V - 2020 - 294563038/M20 - Mountfield Rotary Mower Blade Diagram

Name: SP555 V - 2020 - 294563038/M20 - Mountfield Rotary Mower Blade Diagram
SKU: sp555_v_294563038_m20_blade-group
Price: 1.05 GBP
Availability: InStock

Part No. sp555_v_294563038_m20_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

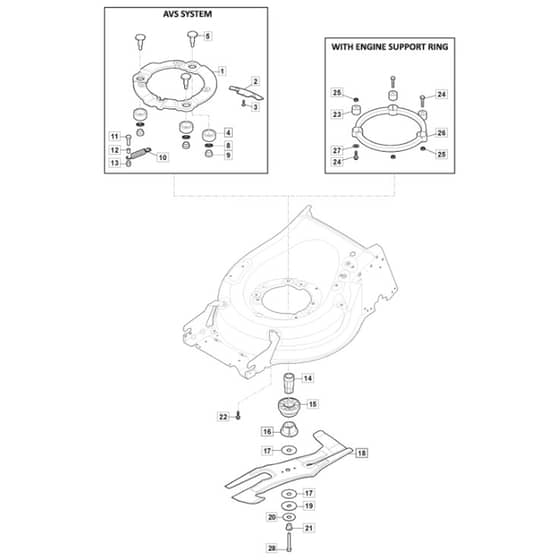

SP555 V - 2020 - 294563038/M20 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2020

Model Type - MP2 554 SV

Art.N - 294563038/M20

Engine Model - GCVx200 OHV Autochoke

	Part No.	Details
1	MO322207226/1 In stock	Flange	£35.20 £29.33
2	MO322551536/0 Available to backorder	Plate	£3.66 £3.05
3	MO112728210/0 In stock	Screw	£1.39 £1.16
4	MO322250015/1 In stock	Grommet	£7.12 £5.93
5	MO122519816/0 In stock	Pin	£12.67 £10.56
8	MO112543002/0 In stock	Washer	£1.26 £1.05
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO122450439/0 In stock	Spring	£3.38 £2.82
11	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
12	MO122170846/0 Available to backorder	Spacer	£3.10 £2.58
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO122785494/0 In stock	Support	£14.80 £12.33
15	MO122601933/0 In stock	Pulley	£59.12 £49.27
16	MO122465656/0 In stock	Blade Hub	£10.58 £8.82
17	MO322672110/1 In stock	Washer	£1.84 £1.53
18	MO181004417/0 In stock	Blade	£56.96 £47.47
18	MO1111-9257-02 Available to backorder	Blade	£72.72 £60.60
19	MO322672105/0 In stock	Washer	£3.55 £2.96
20	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
21	MO122041943/0 In stock	Bush	£9.73 £8.11
22	MO112735108/1 In stock	Screw To fix the Engine	£2.11 £1.76
23	MO122170835/0 Available to backorder	Spacer	£6.64 £5.53
24	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
25	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
26	MO322170964/0 Available to backorder	Protection	£4.24 £3.53
27	MO112521350/0 In stock	Washer	£1.55 £1.29
28	MO112736820/0 In stock	Hex-Head Screw 3.8" X 3"	£2.95 £2.46
