SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Deck Diagram

Description

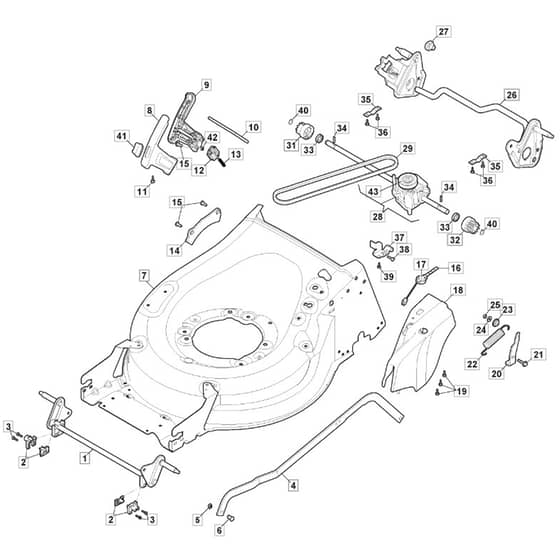

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2019-2021

Model Type - MP2 554 SV

Art.N - 294563038/M19

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302903/1 Available to backorder	Front Wheel Axle	£30.97 £25.81
2	MO322785305/1 In stock	Support	£2.68 £2.23
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869693/1 Available to backorder	Wheels Control Rod To S.N 20BA2WBH072227	£35.20 £29.33
4	MO322869693/2 Available to backorder	Wheels Control Rod From S.N 20BA2WBH072228	£33.65 £28.04
5	MO112436050/0 In stock	Plate	£1.82 £1.52
6	MO122519823/0 In stock	Pin	£2.26 £1.88
7	MO381004839/0 Available to backorder	Grey Deck To 31-8-2018	£211.16 £175.97
7	MO381004855/1 Available to backorder	Grey Deck From 01-9-2018	£189.62 £158.02
8	MO322394534/0 In stock	Upper Handle	£4.22 £3.52
9	MO322394556/0 In stock	Lower Handgrip Black and Red	£5.48 £4.57
10	MO322869723/0 In stock	Rod	£1.69 £1.41
12	MO322109580/0 In stock	Slide	£6.34 £5.28
13	MO122450484/0 Available to backorder	Spring	£1.55 £1.29
14	MO322735592/0 Available to backorder	Sector. Height Adjustment	£11.69 £9.74
16	MO322602031/0 Available to backorder	Position Plate	£2.12 £1.77
17	MO322602027/0 Available to backorder	Lens	£1.82 £1.52
18	MO322055346/0 Available to backorder	Deck. Adjustment	£15.70 £13.08
19	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
20	MO322778475/0 Available to backorder	Bracket	£2.81 £2.34
21	MO112815270/0 Available to backorder	Screw	£1.55 £1.29
22	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
23	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
24	MO112523040/0 In stock	Washer	£1.49 £1.24
25	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO381302905/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH093246	£59.12 £49.27
26	MO381302905/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH093245	£55.86 £46.55
27	MO322038407/0 Available to backorder	Brass	£1.49 £1.24
28	MO181003119/0 Available to backorder	Gear Box Pulley included	£213.60 £178.00
29	MO135064394/0 In stock	Belt	£28.28 £23.57
31	MO322570138/0 In stock	Right Pinion	£7.39 £6.16
32	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
33	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
34	MO122753000/0 In stock	Pin	£1.55 £1.29
35	MO322545147/0 Available to backorder	Plate	£1.97 £1.64
37	MO322778491/0 Available to backorder	Plate	£5.76 £4.80
38	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
39	MO9943-0516-16 In stock	Screw	£1.22 £1.02
40	MO112608600/0 In stock	Seeger	£1.55 £1.29
41	MO322602033/0 Available to backorder	Button. Red	£1.49 £1.24
42	MO112154330/0 In stock	Nut	£1.55 £1.29
43	MO118811482/0 Available to backorder		£68.96 £57.47
