SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Crankcase Diagram

Name: SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Crankcase Diagram
SKU: sp555_v_294563038_m19_crankcase-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Crankcase Diagram

Description

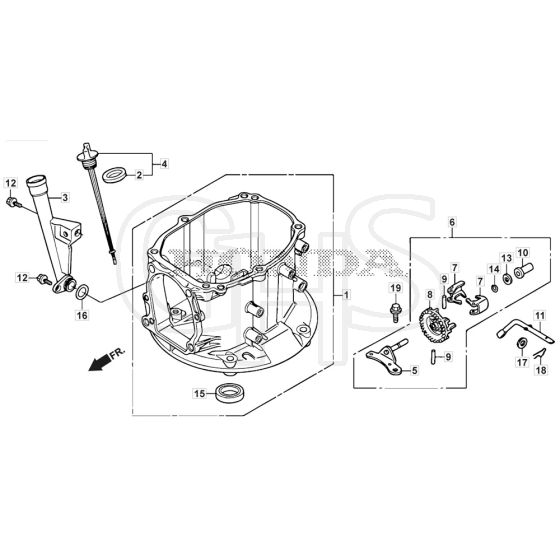

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2019-2021

Model Type - MP2 554 SV

Art.N - 294563038/M19

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11100-Z9L-415 Available to backorder	Crankcase Assy.	£284.16 £236.80
2	HP15625-ZE6-000 Available to backorder	Packing. Oil Filler Cap	£3.56 £2.97
3	HP15631-Z9L-000 Available to backorder	Extension. Oil Filler	£20.22 £16.85
4	HP15650-Z9L-000 Available to backorder	Gauge Assy. Oil Level	£15.28 £12.73
5	HP16508-ZM0-010 Available to backorder	Shaft Comp. Governor Holder	£6.90 £5.75
6	HP16510-ZM0-010 Available to backorder	Governor Assy.	£21.83 £18.19
7	HP16511-ZL8-000 Available to backorder	Weight. Governor	£1.85 £1.54
8	HP16512-ZM0-000 Available to backorder	Holder. Governor Weight	£6.77 £5.64
9	HP16513-ZE1-000 Available to backorder	Pin. Governor Weight	£1.96 £1.63
10	HP16531-Z1T-000 Available to backorder	Slider. Governor	£3.96 £3.30
11	HP16541-Z9L-000 Available to backorder	Shaft. Governor Arm	£4.67 £3.89
12	HP90013-ZL8-000 In stock	Bolt. Flange. 6X14 (Ct200)	Was £1.73 £1.44 Special Price £1.03 £0.86
13	HP90451-Z1T-000 Available to backorder	Washer. Thrust. 6mm	£1.72 £1.43
14	HP90602-ZE1-000 Available to backorder	Clip. Governor Holder	£3.70 £3.08
15	HP91202-Z9L-003 In stock	Oil Seal. 28X41.25X6	£12.41 £10.34
16	HP91301-Z9L-000 Available to backorder	O-Ring. 19.1X2.2	£1.68 £1.40
17	HP94101-06800 Available to backorder	Washer. Plain. 6mm	£0.96 £0.80
18	HP94251-08000 In stock	Pin. Lock. 8mm	£1.86 £1.55
19	HP95701-0601408 Available to backorder	Flange Bolt 6 X 14	£0.90 £0.75
