SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Camshaft Diagram

Description

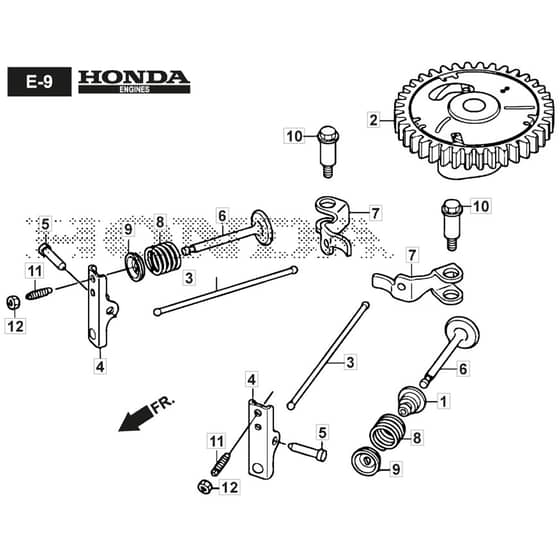

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2019-2021

Model Type - MP2 554 SV

Art.N - 294563038/M19

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	HP12209-Z8B-003 Available to backorder	Seal. Valve Stem	£8.57 £7.14
2	HP14100-Z9L-000 Available to backorder	Camshaft Assy.	£111.84 £93.20
3	HP14410-Z9L-000 Available to backorder	Rod. Push	£7.46 £6.22
4	HP14431-Z9L-000 Available to backorder	Arm. Valve Rocker	£9.06 £7.55
5	HP14461-Z9L-000 Available to backorder	Shaft. Rocker Arm	£2.75 £2.29
6	HP14711-Z9L-000 Available to backorder	Valve. In.	£12.80 £10.67
7	HP14731-Z9L-000 Available to backorder	Lifter. Valve	£10.66 £8.88
8	HP14751-ZL8-000 Available to backorder	Spring. Valve	£2.69 £2.24
9	HP14771-Z0J-000 Available to backorder	Retainer. Valve Spring	£5.23 £4.36
10	HP90001-Z9L-000 Available to backorder	Bolt. Shoulder. 6mm	£2.92 £2.43
11	HP90012-ZCJ-000 Available to backorder	Screw. Tappet Adjusting	£3.11 £2.59
12	HP90206-Z6L-000 Available to backorder		£2.11 £1.76
