SP555 V - 2016-2018 - 294563038/M16 - Mountfield Rotary Mower Fuel Tank Diagram

Name: SP555 V - 2016-2018 - 294563038/M16 - Mountfield Rotary Mower Fuel Tank Diagram
SKU: sp555_v_294563038_m16_fuel_tank-group
Price: 0.81 GBP
Availability: InStock

Part No. sp555_v_294563038_m16_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP555 V - 2016-2018 - 294563038/M16 - Mountfield Rotary Mower Fuel Tank Diagram

Description

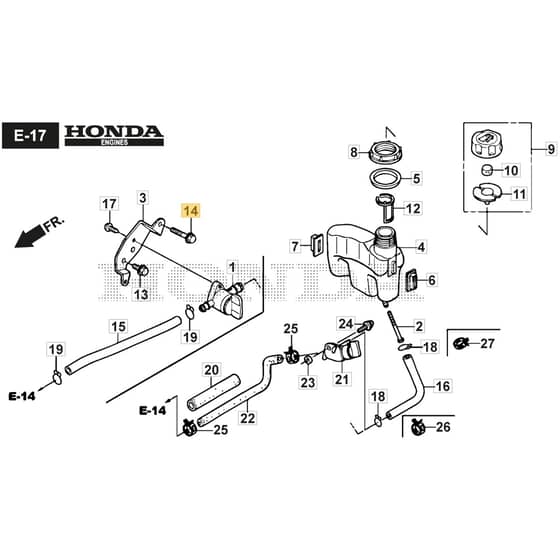

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2016-2018

Model Type - MP2 554 SV

Art.N - 294563038/M16

Engine Model - Honda Honda GCV 190 Autochoke

	Part No.	Details
1	HP16950-Z0Y-003 Available to backorder	Cock Assy. Fuel	£35.81 £29.84
2	HP16952-Z8B-000 Available to backorder	Strainer. Fuel	£8.23 £6.86
3	HP16961-Z0L-900 Available to backorder	Stay. Fuel Cock	£18.92 £15.77
4	HP17511-Z8B-801 Available to backorder	Tank. Fuel	£61.38 £51.15
5	HP17514-Z0L-000 Available to backorder	Seal. Fuel Filler Neck	£11.41 £9.51
6	HP17532-Z8B-800 Available to backorder	Rubber A. Tank Mounting	£3.58 £2.98
7	HP17533-Z8B-800 Available to backorder	Rubber B. Tank Mounting	£5.23 £4.36
8	HP17534-Z0L-000 Available to backorder	Nut. Tank Mounting	£2.64 £2.20
9	HP17620-ZL8-023 In stock	Cap Assy. Fuel Tank	£12.47 £10.39
10	HP17622-888-010 In stock	Sponge. Fuel Cap Breather	£1.63 £1.36
11	HP17624-ZE7-000 In stock	Packing. Fuel Cap	£3.55 £2.96
12	HP17636-Z0L-010 Available to backorder	Gauge. Fuel Level	£10.68 £8.90
13	HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)	£4.34 £3.62
14	HP90015-883-000 Available to backorder	Bolt. Flange. 6X28 (Ct200)	£3.71 £3.09
16	HP17700-Z8B-900 Available to backorder	Tube. Fuel. 7.3X160	£4.04 £3.37
17	HP93913-252-20 Available to backorder	Screw. Tapping. 5X12 (Po)	£1.39 £1.16
18	HP95002-02100 In stock	Clip. Tube (B10)	£1.31 £1.09
19	HP95002-50000 Available to backorder	Clip. Tube (C9)	£0.97 £0.81
20	HP16854-ZH8-000 Available to backorder	Rubber. Supporter (107mm)	£3.72 £3.10
21	HP16950-ZM0-003 In stock	Cock Assy. Fuel	£42.26 £35.22
22	HP17702-ZM0-800 In stock	Tube. Fuel	£10.98 £9.15
24	HP93891-0501008 Available to backorder	Screw-Washer. 5X10	£1.51 £1.26
28	HP95002-02080 In stock	Clip. Tube (B8)	£1.19 £0.99
29	HP95002-02130 Available to backorder	Clip. Tube (B12.5)	£1.26 £1.05
29	HP95002-70000 Available to backorder	Tube Clip	£1.06 £0.88
