SP555 V - 2016-2018 - 294563038/M16 - Mountfield Rotary Mower Deck Diagram

Description

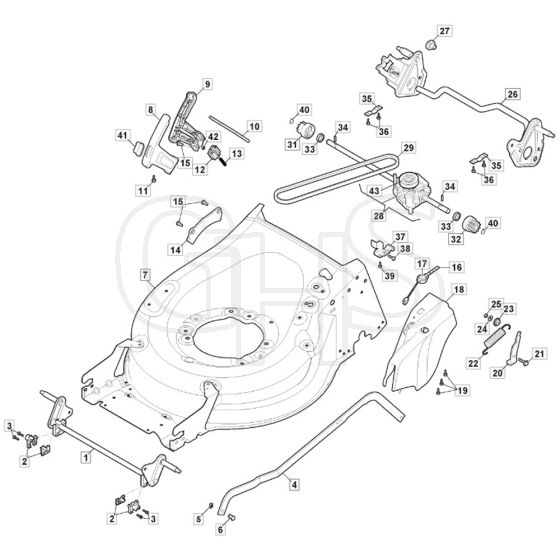

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2016-2018

Model Type - MP2 554 SV

Art.N - 294563038/M16

Engine Model - Honda Honda GCV 190 Autochoke

	Part No.	Details
1	MO381302903/1 Available to backorder	Front Wheel Axle	£30.98 £25.82
2	MO322785305/1 In stock	Support	£2.69 £2.24
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869693/1 Available to backorder	Wheels Control Rod To S.N 20BA2WBH072227	£35.20 £29.33
4	MO322869693/2 Available to backorder	Wheels Control Rod From S.N 20BA2WBH072228	£33.65 £28.04
5	MO112436050/0 In stock	Plate	£1.84 £1.53
6	MO122519823/0 In stock	Pin	£2.24 £1.87
7	MO381004855/1 Available to backorder	Grey Deck From 01-9-2018	£204.13 £170.11
7	MO381004839/0 Available to backorder	Grey Deck To 31-8-2018	£211.15 £175.96
8	MO322394534/0 In stock	Upper Handle	£4.24 £3.53
9	MO322394556/0 In stock	Lower Handgrip Black and Red	£5.47 £4.56
10	MO322869723/0 In stock	Rod	£1.70 £1.42
12	MO322109580/0 In stock	Slide	£6.34 £5.28
13	MO122450484/0 In stock	Spring	£1.55 £1.29
14	MO322735592/0 Available to backorder	Sector. Height Adjustment	£11.69 £9.74
16	MO322602031/0 Available to backorder	Position Plate	£2.22 £1.85
17	MO322602027/0 Available to backorder	Lens	£1.84 £1.53

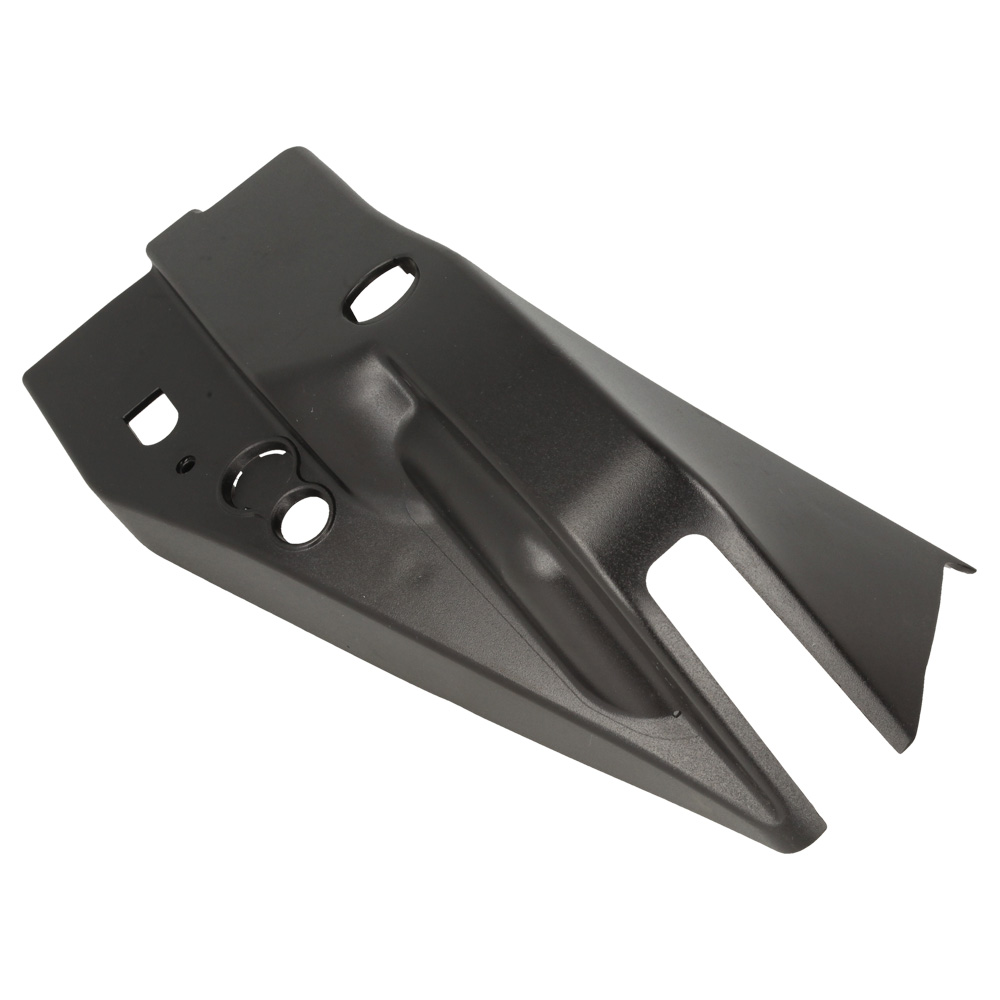

18	MO322055346/0 Available to backorder	Deck. Adjustment	£15.68 £13.07
19	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
20	MO322778475/0 Available to backorder	Bracket	£2.82 £2.35
21	MO112815270/0 Available to backorder	Screw	£1.63 £1.36
22	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
23	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
24	MO112523040/0 In stock	Washer	£1.55 £1.29
25	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO381302905/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH093246	£59.12 £49.27
26	MO381302905/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH093245	£59.12 £49.27
27	MO322038407/0 Available to backorder	Brass	£1.63 £1.36
28	MO181003119/0 Available to backorder	Gear Box Pulley included	£225.23 £187.69
29	MO135064394/0 In stock	Belt	£25.44 £21.20
31	MO322570138/0 In stock	Right Pinion	£7.39 £6.16
32	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
33	MO119216035/0 In stock	Bearing	£3.52 £2.93
34	MO122753000/0 In stock	Pin	£1.55 £1.29
35	MO322545147/0 Available to backorder	Plate	£1.97 £1.64
37	MO322778491/0 Available to backorder	Plate	£5.76 £4.80
38	MO112735664/0 In stock	Screw	£1.39 £1.16
39	MO9943-0516-16 In stock	Screw	£1.26 £1.05
40	MO112608600/0 In stock	Seeger	£1.55 £1.29
41	MO322602033/0 In stock	Button. Red	£1.55 £1.29
42	MO112154330/0 In stock	Nut	£1.55 £1.29
43	MO118811482/0 Available to backorder		£68.96 £57.47
