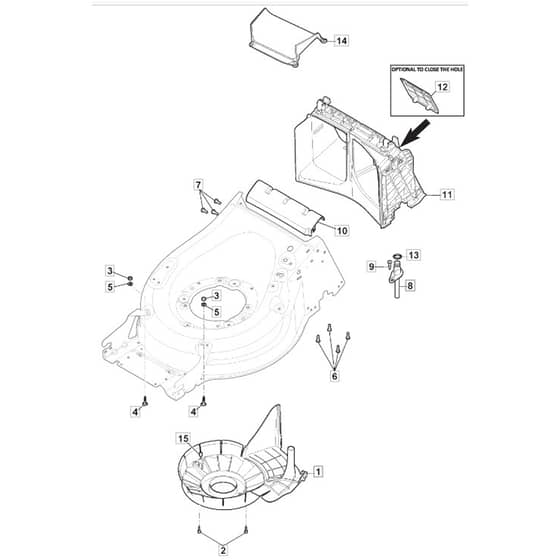

SP555 R V - 2022 - 294569033/M22 - Mountfield Rotary Mower Belt Protection Diagram

Name: SP555 R V - 2022 - 294569033/M22 - Mountfield Rotary Mower Belt Protection Diagram
SKU: sp555_r_v_294569033_m22_belt_protection-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP555 R V - 2022 - 294569033/M22 - Mountfield Rotary Mower Belt Protection Diagram

Description

Mountfield SP555 R V Parts Diagram

Product Name - SP 555 R V

Model Year - 2022

Model Type - MP2 554 SV-R

Art.N - 294569033/M22

Engine Model - GCVx200 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322060284/1 Out of stock	Carter Mulching From S.N SK8357646	£16.99 £14.16
1	MO322060284/0 Out of stock	Carter Mulching To S.N SK8357645	£16.12 £13.43
2	MO112735645/0 In stock	Screw	£1.75 £1.46
3	MO112154510/0 In stock	Nut	£1.63 £1.36
4	MO112815206/0 Out of stock	Screw	£1.63 £1.36
5	MO112521330/0 Out of stock	Washer	£1.49 £1.24
6	MO112728210/0 Out of stock	Screw	£1.36 £1.13
7	MO112735664/0 In stock	Screw	£1.36 £1.13
8	MO322034006/0 Out of stock	Washing Connection White Galvanized	£10.57 £8.81
8	MO322034002/0 Out of stock	Washing Connection Black Plastic	£1.80 £1.50
9	MO112728697/0 In stock	Screw	£1.63 £1.36
10	MO322109588/0 Out of stock	Support. Black Black	£5.28 £4.40
11	MO381004826/0 Out of stock	Conveyor	£142.21 £118.51
12	MO322600310/0 Out of stock	Rear Door	£4.56 £3.80
13	MO119035000/0 Out of stock	Or Ring	£4.87 £4.06
14	MO322108320/0 Out of stock	Rear Door	£21.26 £17.72
15	MO122042073/0 Out of stock	Belt Guard Bush	£1.80 £1.50
