SP555 R V - 2016-2019 - 294569038/M16 - Mountfield Rotary Mower Carburettor Diagram

Description

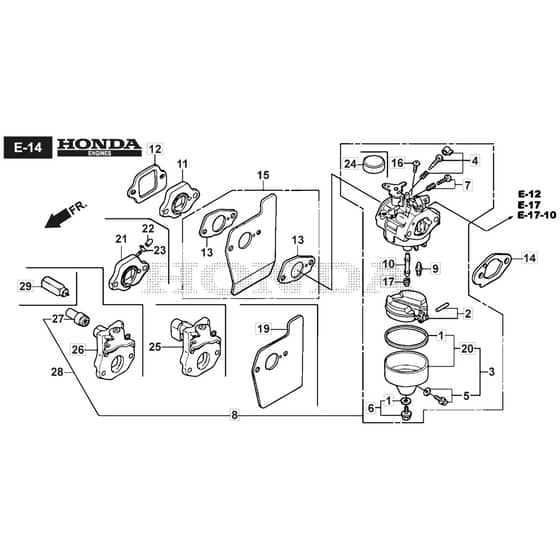

Mountfield SP555 R V Parts Diagram

Product Name - SP 555 R V

Model Year - 2016-2019

Model Type - MP2 554 SV-R

Art.N - 294569038/M16

Engine Model - Honda Honda GCV 190 Autochoke

	Part No.	Details
1	HP16010-883-015 In stock	Packing Set	£13.36 £11.13
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.44 £30.37
4	HP16016-ZG0-W00 Available to backorder	Screw Set	£13.69 £11.41
6	HP16028-ZK7-S91 In stock	Screw Set	£14.34 £11.95
7	HP16029-ZG0-901 Available to backorder	Screw Set (Throttle Stop)	£14.30 £11.92
8	HP16100-Z0Y-M42 Available to backorder	Carburetor Assy. (Bb75F B)	£125.16 £104.30
9	HP16155-ZM0-013 In stock	Valve. Float	£38.47 £32.06
10	HP16166-Z0Y-003 Available to backorder	Nozzle. Main	£35.59 £29.66
12	HP16212-ZL8-000 In stock	Packing. Insulator	£3.07 £2.56
14	HP16228-Z0L-840 In stock	Packing. Carburetor (Choke Side)	£2.36 £1.97
16	HP93500-050-060H Available to backorder	Screw. Pan. 5X6	£2.32 £1.93
17	HP99101-1240680 Available to backorder	Jet. Main. #68	£12.34 £10.28
17	HP99101-1240620 Available to backorder	Jet. Main. #62	£12.34 £10.28
17	HP99101-1240650 Available to backorder	Jet. Main. #65	£12.34 £10.28
19	HP19651-Z0L-000 In stock	Guide. Air	£4.18 £3.48
20	HP16015-Z0L-881 Available to backorder	Chamber Set. Float	£57.95 £48.29
24	HP16148-Z1L-851 Available to backorder	Cap. Choke Dust	£6.29 £5.24
26	HP16600-Z8D-840 In stock	Control Assy. Choke	£78.47 £65.39
29	HP16620-Z9L-003 In stock	Thermowax Assy	£41.82 £34.85
