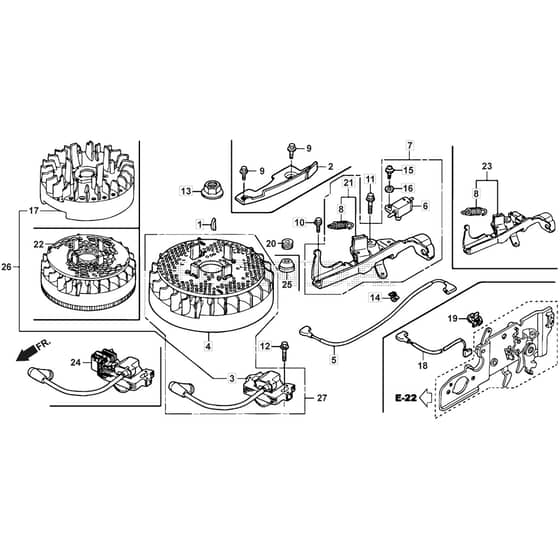

SP555 - 2014-2015 - 292552238/BQ - Mountfield Rotary Mower Flywheel GCV160A0 S4 LE SD Diagram

Description

Mountfield SP555 Parts Diagram

Product Name - SP 555

Model Year - 2014-2015

Model Type - TU 554 TR

Art.N - 292552238/BQ

Engine Model - GCV 160 Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
3	HP30500-ZL8-014 Available to backorder	Coil Assy. Ignition (Tec) (Use For F.W	£81.47 £67.89
4	HP31105-ZM0-000 Available to backorder	Flywheel Assy. (Tec) (Use For Ign. Coil	£51.05 £42.54
5	HP32195-Z0L-000 Available to backorder	Cord. Stop Switch	£10.98 £9.15
6	HP35120-ZM0-003 Available to backorder	Switch Assy. Engine Stop (N.C)	£11.82 £9.85
7	HP75100-Z0L-901 Available to backorder	Brake Assy.	£50.68 £42.23
8	HP75113-ZM0-000 Available to backorder	Spring. Brake Lever	£2.70 £2.25
10	HP90014-952-000 Available to backorder	Bolt. Flange. 6X14 (Ct200)	£3.73 £3.11
12	HP90018-ZE1-000 Available to backorder	Bolt	£2.94 £2.45
13	HP90201-Z0T-800 Available to backorder	Nut. Special. 14mm	£7.04 £5.87
14	HP90681-959-003 Available to backorder	Clip A. Cable (Nifco) (3.8mm Black)	£0.96 £0.80
15	HP93892-0401200 Available to backorder	Screw-Washer. 4X12	£1.50 £1.25
16	HP94103-040-00 Available to backorder	Washer. Plain. 4mm	£0.94 £0.78
21	HP75110-Z0L-901 Available to backorder	Brake Assy	£50.68 £42.23
