SP555 - 2010-2012 - 292552138/BQ - Mountfield Rotary Mower Wheels Diagram

Description

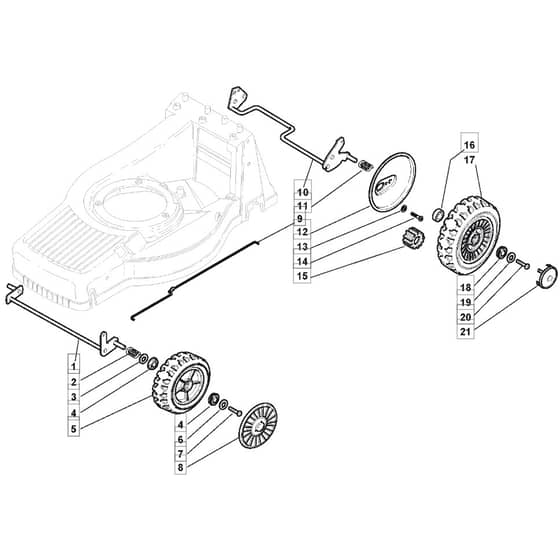

Mountfield SP555 Parts Diagram

Product Name - SP 555

Model Year - 2010-2012

Model Type - TU 554 TR

Art.N - 292552138/BQ

	Part No.	Details
2	MO122430210/0 Available to backorder	Bearing	£1.70 £1.42
3	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
4	MO122122206/0 In stock	Bearing	£1.84 £1.53
5	MO381007351/0 In stock	Wheel Ø 170 From 01-9-2006	£13.66 £11.38
5	MO1111-2784-01 In stock	Wheel To 31-8-2006	£18.59 £15.49
6	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
7	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
8	MO322110729/0 In stock	Hub Cap Grey Grey	£2.69 £2.24
11	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
15	MO122570125/0 In stock	Pinion	£14.64 £12.20
16	MO119216038/0 Available to backorder	Bearing	£5.92 £4.93
18	MO122122201/0 In stock	Bearing	£2.24 £1.87
21	MO322110384/0 Available to backorder	Hub Cap 190.215 [Grey]	£7.19 £5.99
