SP535 HWV - 2019 - 294557838/M19 - Mountfield Rotary Mower Ejection Guard Diagram

Description

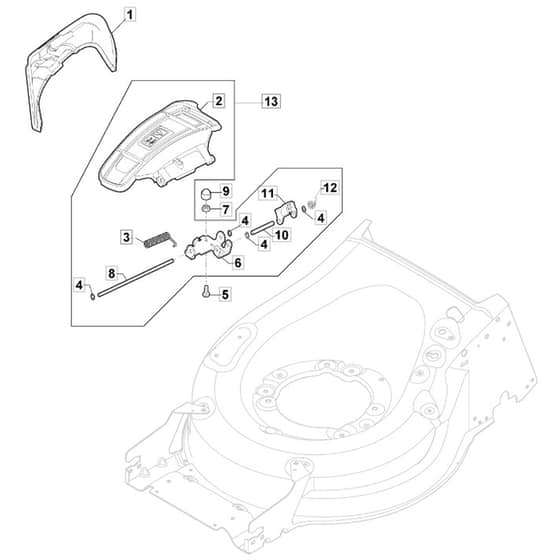

Mountfield SP535 HWV Parts Diagram

Product Name - SP 535 HW V

Model Year - 2019

Model Type - MP1 554 WSVQ

Art.N - 294557838/M19

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	MO322108315/0 In stock	Conveyor	£11.82 £9.85
2	MO381008162/1 In stock	Stone Guard	£19.01 £15.84
3	MO122450456/1 Available to backorder	Spring	£3.25 £2.71
4	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
5	MO112727803/0 Available to backorder	Screw	£1.63 £1.36
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO122517869/1 Available to backorder	Pin	£3.79 £3.16
9	MO118203853/0 Available to backorder	Cap	£2.69 £2.24
10	MO122517876/0 Available to backorder	Pin	£1.39 £1.16
12	MO122450493/0 Available to backorder	Spring	£1.33 £1.11
