SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Upper Handle Diagram

Description

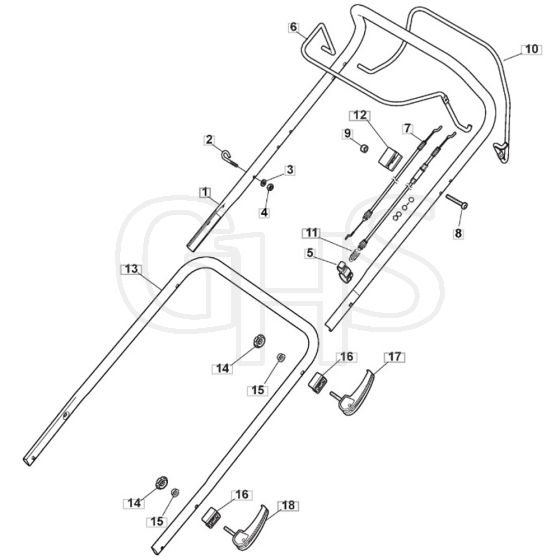

Mountfield SP535 HWV Parts Diagram

Product Name - SP 535 HW V

Model Year - 2016-2018

Model Type - MP1 554 WSVQ

Art.N - 294557838/M16

Engine Model - Honda GCV 190

	Part No.	Details
1	MO381007571/2 In stock	Black Upper Handle With Rubberized Grip	£39.42 £32.85
2	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
3	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
5	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
6	MO181003363/1 In stock	Lever. Engine Brake Black Black	£14.93 £12.44
7	MO181030106/0 In stock	Cable. Thread Engine Brake	£13.87 £11.56
8	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO181003364/0 In stock	Drive Control Lever Black	£15.20 £12.67
11	MO381030104/1 In stock	Clutch Cable	£17.87 £14.89
12	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
13	MO381007563/1 Available to backorder	Lower Handle	£36.59 £30.49
14	MO322399835/0 In stock	Black Knob	£1.97 £1.64
15	MO122131750/0 In stock	Nut	£1.97 £1.64
16	MO322680016/1 In stock	Handle Fixing Washer	£1.97 £1.64
17	MO381103360/0 In stock	Locking Handle Lever Black To 31-5-2020	£5.47 £4.56
18	MO381103359/1 In stock	Locking Handle Lever L	£5.06 £4.22
