SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Flywheel/Ignition Coil - GCV190A S4 LE SD Diagram

Description

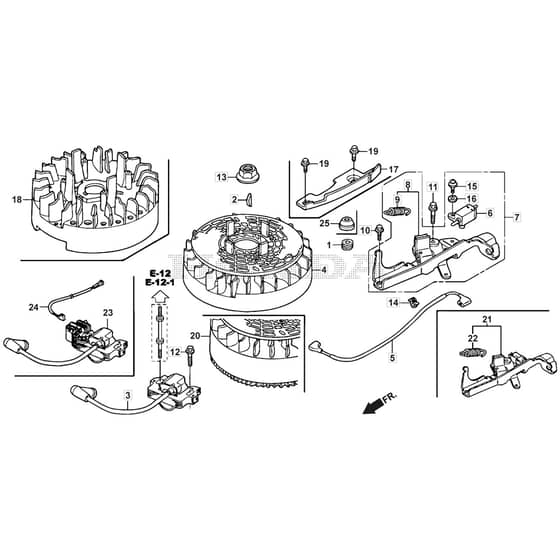

Mountfield SP535 HWV Parts Diagram

Product Name - SP 535 HW V

Model Year - 2016-2018

Model Type - MP1 554 WSVQ

Art.N - 294557838/M16

Engine Model - Honda GCV 190

	Part No.	Details
1	HP13331-Z8B-900 Available to backorder	Key. Special Woodruff. 25X18	£1.93 £1.61
3	HP30500-Z8B-903 Available to backorder	Coil Assy. Ignition (Phelon)	£81.48 £67.90
4	HP31105-Z0Y-800 Available to backorder	Flywheel Assy. (Tec) (Use For Ign. Coil	£54.58 £45.48
5	HP32195-Z0L-000 Available to backorder	Cord. Stop Switch	£11.09 £9.24
6	HP35120-ZM0-003 Available to backorder	Switch Assy. Engine Stop (N.C)	£12.23 £10.19
7	HP75100-Z0L-901 Available to backorder	Brake Assy.	£51.14 £42.62
8	HP75110-Z0L-901 Available to backorder	Brake Sub Assy.	£51.14 £42.62
9	HP75113-ZM0-000 Available to backorder	Spring. Brake Lever	£2.72 £2.27
10	HP90014-952-000 Available to backorder	Bolt. Flange. 6X14 (Ct200)	£3.77 £3.14
12	HP90018-ZE1-000 Available to backorder	Bolt	£2.96 £2.47
13	HP90213-S3Y-000 Available to backorder	Nut. Flange. 14mm	£5.52 £4.60
14	HP90681-959-003 Available to backorder	Clip A. Cable (Nifco) (3.8mm Black)	£0.97 £0.81
15	HP93892-0401200 Available to backorder	Screw-Washer. 4X12	£1.51 £1.26
16	HP94103-040-00 Available to backorder		£0.89 £0.74
