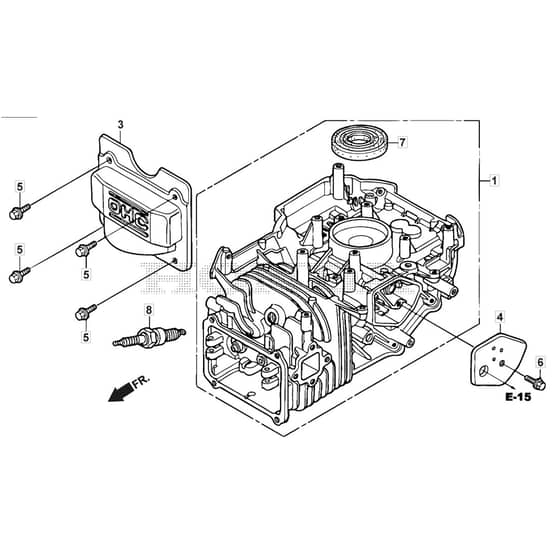

SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Cylinder Barrel Diagram

SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Cylinder Barrel Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Cylinder Barrel Diagram

SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Cylinder Barrel Diagram

Description

Mountfield SP535 HWV Parts Diagram

Product Name - SP 535 HW V

Model Year - 2016-2018

Model Type - MP1 554 WSVQ

Art.N - 294557838/M16

Engine Model - Honda GCV 190

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	4		HP12355-ZL8-000 Available to backorder	Cover Comp. Breather		£10.61 £8.84
	5		HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)		£5.42 £4.52
	6		HP90014-952-000 Available to backorder	Bolt. Flange. 6X14 (Ct200)		£3.73 £3.11
	7		HP91201-Z0Y-003 Available to backorder	Oil Seal. 25.4X62X6		£4.38 £3.65
	8		2135 In stock	Plug. Spark (Bpr5Es) (Ngk)		£2.30 £1.92
	9		HP12311-Z8B-000 Available to backorder	Cover. Head		£8.82 £7.35
	10		HP16384-Z8B-000 Available to backorder	Bracket. Regulator		£3.60 £3.00
