SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Controls Diagram

Name: SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Controls Diagram
SKU: sp535_hwv_294557838_m16_controls-group
Price: 0.78 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP535 HWV - 2016-2018 - 294557838/M16 - Mountfield Rotary Mower Controls Diagram

Description

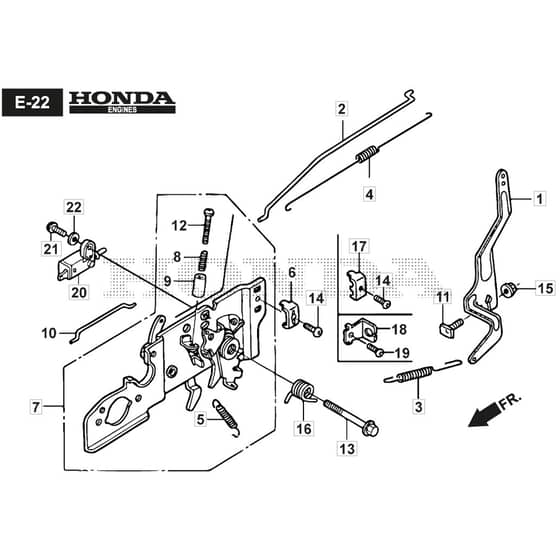

Mountfield SP535 HWV Parts Diagram

Product Name - SP 535 HW V

Model Year - 2016-2018

Model Type - MP1 554 WSVQ

Art.N - 294557838/M16

Engine Model - Honda GCV 190

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16551-ZM0-010	Arm. Governor	Out of stock	£11.76 £9.80
2	HP16555-Z0L-801	Rod. Governor	Out of stock	£7.08 £5.90
3	HP16561-Z0L-000	Spring. Governor	Out of stock	£3.70 £3.08
4	HP16562-ZM0-000	Spring. Throttle Return	In stock	£4.80 £4.00
5	HP16576-ZE7-300	Spring. Lever	Out of stock	£5.28 £4.40
7	HP16580-Z0Y-V71	Base Comp. Control	Out of stock	£50.41 £42.01
11	HP90015-ZE5-010	Bolt. Governor Arm	Out of stock	£3.56 £2.97
13	HP90014-888-000	Bolt. Flange. 6X50 (Ct200)	Out of stock	£6.40 £5.33
14	HP93500-050160A	Screw. Pan. 5X16	Out of stock	£1.61 £1.34
15	HP94050-06000	Nut. Flange. 6mm	In stock	£4.01 £3.34
17	HP16617-VG3-000	Holder. Cable	Out of stock	£2.18 £1.82
20	HP35120-Z1L-J21	Switch Assy. Engine Stop (N.O)	Out of stock	£18.90 £15.75
21	HP93892-0401200	Screw-Washer. 4X12	Out of stock	£1.90 £1.58
22	HP94103-040-00		Out of stock	£0.94 £0.78
