SP535 HW4S - 2020-2022 - 299537838/MTF - Mountfield Rotary Mower Carburettor Diagram

Description

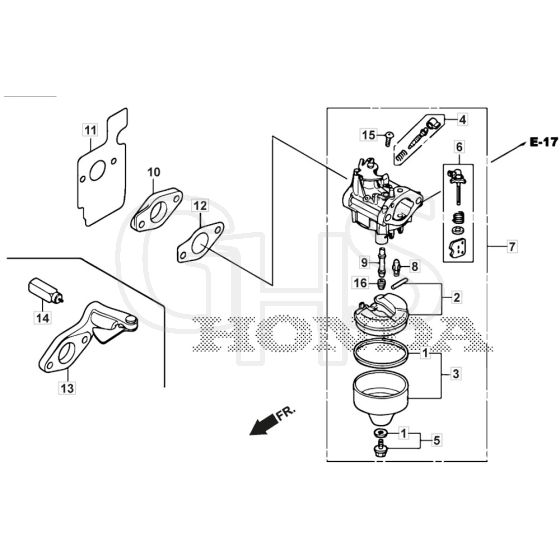

Mountfield SP535 HW4S Parts Diagram

Product Name - SP 535 HW 4S

Model Year - 2020-2022

Model Type - NTL 534 W TRQ 4S

Art.N - 299537838/MTF

	Part No.	Details
1	HP16010-Z9L-811 In stock	Gasket Set	£3.95 £3.29
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.44 £30.37
3	HP16015-Z9L-811 Available to backorder	Chamber Set. Float	£51.25 £42.71
4	HP16016-ZG0-W00 Available to backorder	Screw Set	£13.69 £11.41
5	HP16028-ZK7-S91 In stock	Screw Set	£14.34 £11.95
6	HP16044-Z9L-811 Available to backorder	Choke Set	£25.91 £21.59
7	HP16100-Z9L-811 In stock	Carburetor Assy. (Bb76J A)	£126.00 £105.00
8	HP16155-ZM0-013 In stock	Valve. Float	£38.47 £32.06
9	HP16166-Z9L-811 Available to backorder	Nozzle. Main	£34.03 £28.36
11	HP16212-Z9L-000 In stock	Packing. Insulator	£9.95 £8.29
12	HP16221-Z9L-000 In stock	Packing. Carburetor	£2.29 £1.91
13	HP16600-Z9L-000 In stock	Control Assy. Choke	£65.05 £54.21
14	HP16620-Z8D-842 In stock	Thermowax Assy.	£41.82 £34.85
15	HP93500-050-060H Available to backorder	Screw. Pan. 5X6	£2.32 £1.93
16	HP99101-1240680 Available to backorder	Main Jet	£12.34 £10.28
