SP535 HW - 2014 - 299536038/M14 - Mountfield Rotary Mower Upper Handle Diagram

Name: SP535 HW - 2014 - 299536038/M14 - Mountfield Rotary Mower Upper Handle Diagram
SKU: sp535_hw_299536038_m14_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. sp535_hw_299536038_m14_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP535 HW - 2014 - 299536038/M14 - Mountfield Rotary Mower Upper Handle Diagram

Description

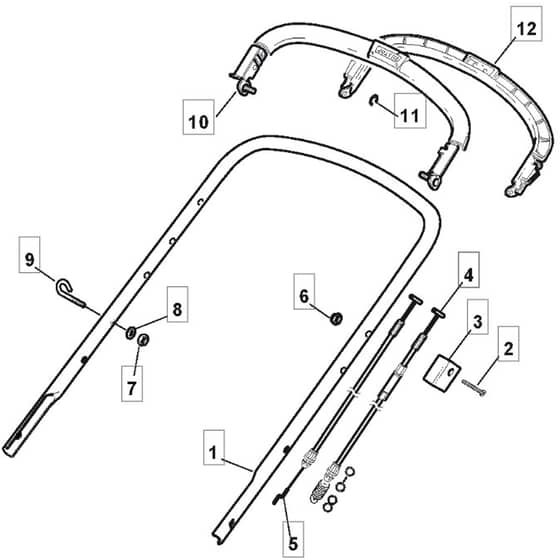

Mountfield SP535 HW Parts Diagram

Product Name - SP 535 HW

Model Year - 2014

Model Type - NTL 534 W TR

Art.N - 299536038/M14

	Part No.	Details
1	MO381006867/0 Available to backorder	Upper Handle Grey	£35.20 £29.33
2	MO112727787/0 Available to backorder	Screw	£1.84 £1.53
3	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
4	MO381030055/0 In stock	Cable Rear Drive	£21.66 £18.05
5	MO181030056/1 In stock	Cable. Thread Engine Brake - Honda . B&S . Ggp Engine	£11.95 £9.96
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
9	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
10	MO381003330/0 Available to backorder	Lever. Engine Brake	£66.16 £55.13
11	MO112000930/0 In stock	Benzing Ring	£1.55 £1.29
12	MO381003297/1 In stock	Drive Control Lever	£22.10 £18.42
