SP53 H - 2019 - 295546138/WX - Mountfield Rotary Mower Deck Diagram

Description

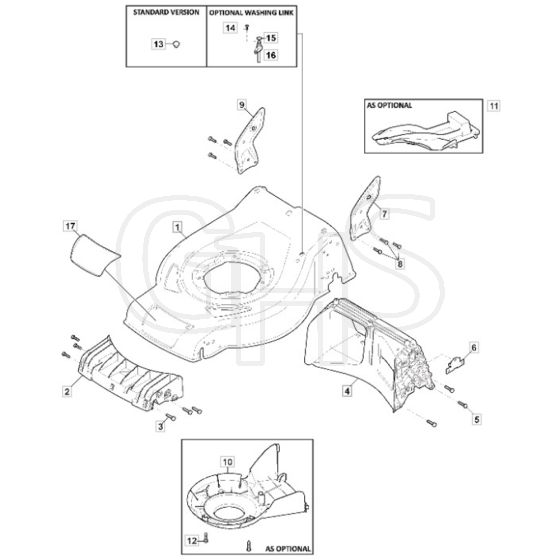

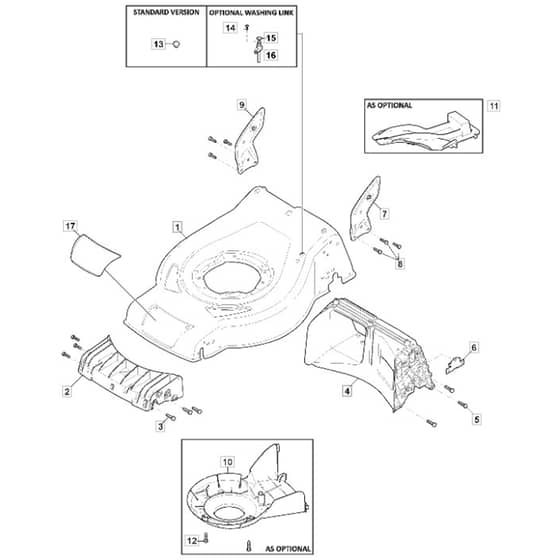

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2019

Model Type - CSC 534 WS

Art.N - 295546138/WX

	Part No.	Details
1	MO381004949/0 Available to backorder	Black Deck To 31-August-2018	£190.03 £158.36
1	MO381004949/1 Available to backorder	Black Deck From 01-9-2018	£190.03 £158.36
2	MO322108308/1 Available to backorder	Rear Conveyor Assy	£14.00 £11.67
4	MO322108392/0 Available to backorder	Rear Conveyor Assy	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005167/1 Available to backorder	Left Bracket	£8.18 £6.82
8	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
9	MO381005165/1 Available to backorder	Right Bracket	£7.74 £6.45
10	MO322060250/1 In stock	Belt Protection As Optional	£10.85 £9.04
11	MO322140244/1 In stock	Mulching Deflector As Optional	£16.34 £13.62
12	MO112728903/0 In stock	Screw As Optional	£1.39 £1.16
13	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
14	MO112728450/0 In stock	Screw	£1.55 £1.29
15	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
16	MO322034002/0 In stock	Washing Connection	£1.70 £1.42
17	MO322055606/0 Available to backorder	Front Deck Insert Cs53 [Black]	£2.95 £2.46
