SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Transmission Diagram

Description

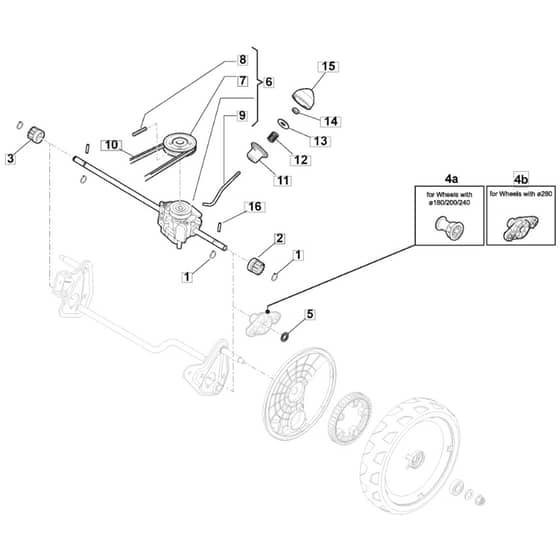

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2017-2019

Model Type - CSC 534 WS

Art.N - 295546038/WX

Engine Model - Honda GCV 160 Auotchoke

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
2	MO122570134/0 In stock	Left Pinion	£7.52 £6.27
3	MO122570133/0 In stock	Right Pinion	£7.52 £6.27
4	MO322042067/0 In stock	4B Bushing For wheels ø280	£4.24 £3.53
5	MO112521371/0 Available to backorder	Washer	£1.63 £1.36
6	MO181003092/0 In stock	Gear Box	£63.96 £53.30
7	MO122601909/0 In stock	Pulley	£5.65 £4.71
8	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
9	MO122033283/0 In stock	Adjustment Rod	£4.64 £3.87
10	MO135064196/0 In stock	Belt	£8.40 £7.00
11	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
12	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
13	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
16	MO122753000/0 In stock	Pin D.5.2 X 25.65	£1.55 £1.29
