SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Piston Diagram

Description

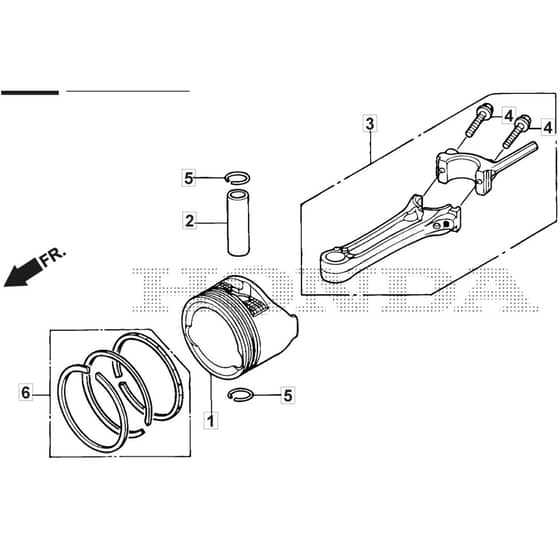

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2017-2019

Model Type - CSC 534 WS

Art.N - 295546038/WX

Engine Model - Honda GCV 160 Auotchoke

	Part No.	Details
1	HP13101-Z8A-900 In stock	Piston	Was £45.78 £38.15 Special Price £32.96 £27.47
2	HP13111-Z8B-000 Available to backorder	Pin. Piston	£13.32 £11.10
3	HP13200-Z0J-000 Available to backorder	Rod Assy. Connecting	£51.79 £43.16
4	HP90006-Z8B-000 Available to backorder	Bolt. Connecting Rod	£4.13 £3.44
5	HP90551-ZE0-000 Available to backorder	Clip. Piston Pin. 13mm	£1.87 £1.56
6	HP13010-Z0L-014 Available to backorder	Piston Ring Set - Std	£32.53 £27.11
