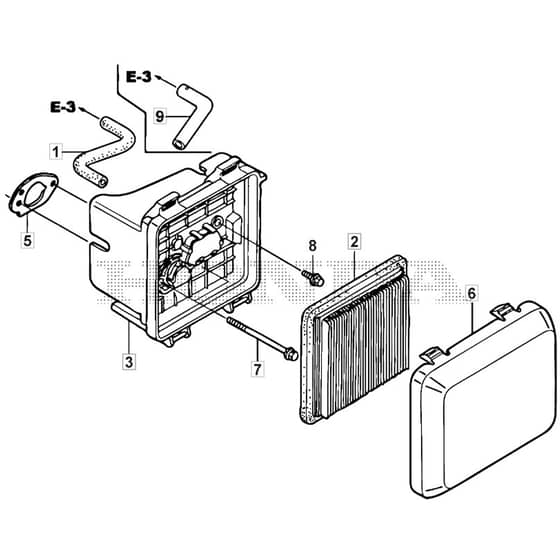

SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Air Filter Diagram

Name: SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Air Filter Diagram
SKU: sp53_h_295546038_wx_air_filter-group
Price: 3.19 GBP
Availability: InStock

Part No. sp53_h_295546038_wx_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Air Filter Diagram

Description

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2017-2019

Model Type - CSC 534 WS

Art.N - 295546038/WX

Engine Model - Honda GCV 160 Auotchoke

	Part No.	Details
1	HP15721-ZM0-000 Available to backorder	Tube. Breather	£4.08 £3.40
2	HP17211-Z8B-901 In stock	Element. Air Cleaner (Wix Filters)	£13.36 £11.13
2	HP17211-ZL8-023 In stock	Element. Air Cleaner (Toyo Roki)	£13.36 £11.13
3	HP17221-Z8B-900 Available to backorder	Case. Air Cleaner	£10.31 £8.59
3	HP17220-Z8B-010 Available to backorder	Case Assy. Air Cleaner	£14.74 £12.28
5	HP17228-Z8B-900 Available to backorder	Packing. Air Cleaner	£3.83 £3.19
7	HP90003-Z8B-900 Available to backorder	Bolt. Special. 6mm	£4.13 £3.44
9	HP15721-Z8B-900 Available to backorder	Breather Tube	£10.86 £9.05
