SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Upper Handle Diagram

Name: SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Upper Handle Diagram
SKU: sp53_h_295546038_sf_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. sp53_h_295546038_sf_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Upper Handle Diagram

Description

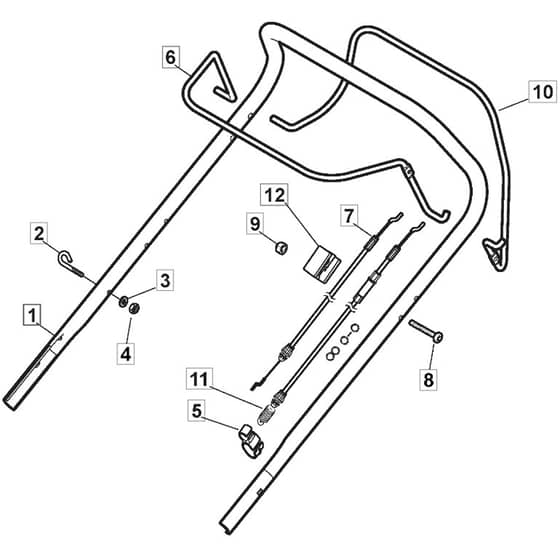

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2015-2018

Model Type - CSC 534 WS

Art.N - 295546038/SF

Engine Model - Honda GCV 160 Auotchoke

	Part No.	Details
1	MO381006787/1 In stock	Handle	£39.42 £32.85
1	MO381006745/3 In stock	Handle	£39.42 £32.85
2	MO122430313/0 In stock	Guide Spring Not used on Electric Start Models	£3.92 £3.27
3	MO112521330/0 Available to backorder	Washer Not used on Electric Start Models	£1.63 £1.36
5	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
6	MO181003363/1 In stock	Lever	£14.93 £12.44
7	MO181030088/0 In stock	Cable. Thread Engine Brake	£13.50 £11.25
8	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO181003364/0 In stock	Drive Control Lever Black	£15.20 £12.67
11	MO381030051/1 In stock	Cable Rear Drive	£17.17 £14.31
12	MO322551685/0 In stock	Cable Holder Block D	£7.52 £6.27
