SP53 ELITE - 2021-2023 - 2L0536038/M21 - Mountfield Rotary Mower Crankcase Cover Diagram

Description

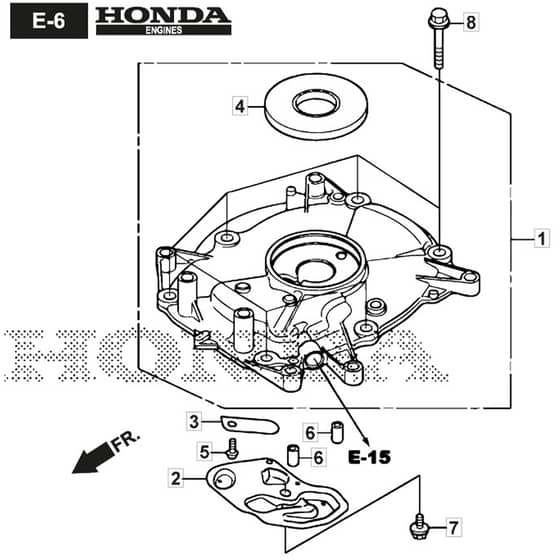

Mountfield SP53 ELITE Parts Diagram

Product Name - SP53 ELITE

Model Year - 2021-2023

Model Type - CP1 534 S

Art.N - 2L0536038/M21

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	HP11300-Z9L-405 Available to backorder	Cover Assy. Crankcase	£135.96 £113.30
2	HP12356-Z9L-000 Available to backorder	Cover. Breather	£5.98 £4.98
3	HP12377-Z9L-000 Available to backorder	Plate. Valve	£2.80 £2.33

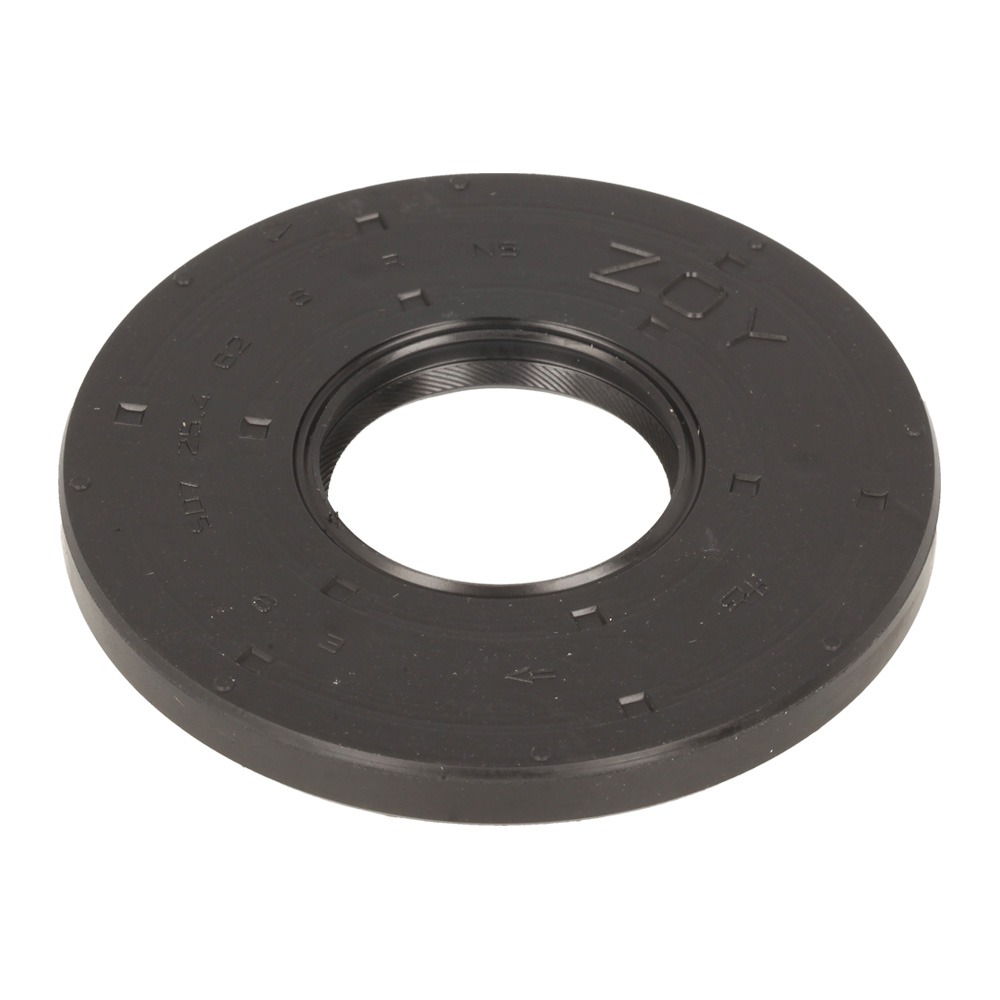

4	HP91201-Z0Y-003 Available to backorder	Oil Seal. 25.4X62X6	£4.43 £3.69
5	HP93500-050080A Available to backorder	Screw. Pan. 5X8	£1.51 £1.26
6	HP94301-08140 Available to backorder	Dowel Pin. 8X14	£3.06 £2.55
7	HP95701-0601408 Available to backorder	Bolt. Flange. 6X14	£0.90 £0.75
8	HP95701-0802508 Available to backorder	Flange Bolt 8 X 25	£2.03 £1.69
