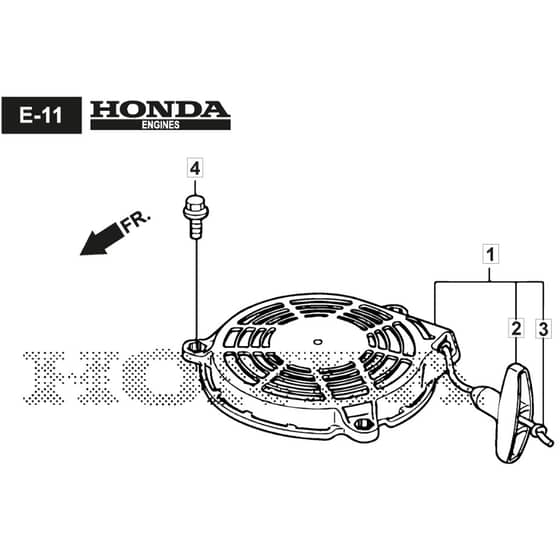

SP505 V SC - 2020 - 294513538/M20 - Mountfield Rotary Mower Recoil Starter Diagram

SP505 V SC - 2020 - 294513538/M20 - Mountfield Rotary Mower Recoil Starter Diagram
SP505 V SC - 2020 - 294513538/M20 - Mountfield Rotary Mower Recoil Starter Diagram

Description

Mountfield SP505 V SC Parts Diagram

Product Name - SP 505 V SC

Model Year - 2020

Model Type - MP2 504 SVE

Art.N - 294513538/M20

Engine Model - GCVxe170 OHV Autochoke

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Starter Assy. Recoil (Long Rope)
Starter Assy. Recoil (Long Rope)
HP28400-Z9L-014 Out of stock
Starter Assy. Recoil (Long Rope)
£45.96 £38.30

  2 Grip. Starter
Grip. Starter
HP28461-ZL8-003 Out of stock
Grip. Starter
£6.24 £5.20

  3 Rope. Recoil Starter (Long Type)
Rope. Recoil Starter (Long Type)
HP28462-ZL8-V71 Out of stock
Rope. Recoil Starter (Long Type)
£9.46 £7.88

  4 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP95701-0601408 Out of stock
Flange Bolt 6 X 14
£1.50 £1.25


Description

Mountfield SP505 V SC Parts Diagram

Product Name - SP 505 V SC

Model Year - 2020

Model Type - MP2 504 SVE

Art.N - 294513538/M20

Engine Model - GCVxe170 OHV Autochoke
