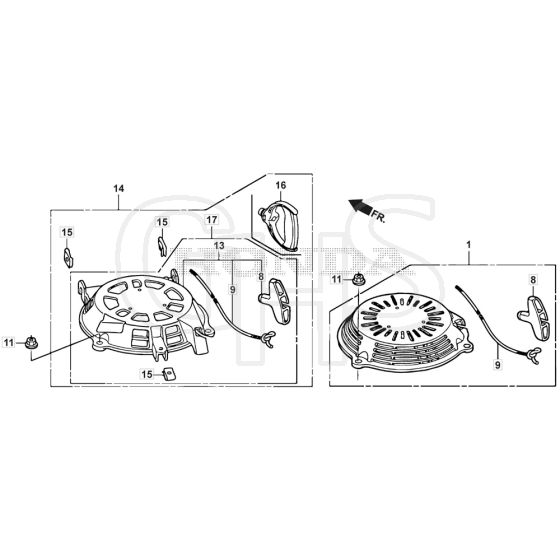

SP505 R - 2014 - 292505038/M14 - Mountfield Rotary Mower Recoil Starter Diagram

Name: SP505 R - 2014 - 292505038/M14 - Mountfield Rotary Mower Recoil Starter Diagram
SKU: sp505_r_292505038_m14_recoil_starter-group
Price: 3.16 GBP
Availability: InStock

Part No. sp505_r_292505038_m14_recoil_starter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP505 R - 2014 - 292505038/M14 - Mountfield Rotary Mower Recoil Starter Diagram

Description

Mountfield SP505 R Parts Diagram

Product Name - SP 505 R

Model Year - 2014

Model Type - TU 504 TR-R 4S

Art.N - 292505038/M14

Engine Model - GCV 160 OHC Autochoke

	Part No.	Details
1	HP28461-ZL8-003 In stock	Grip. Starter	£6.22 £5.18
9	HP28462-ZL8-631 In stock	Rope. Recoil Starter (Long Type)	£9.16 £7.63
11	HP90201-ZM0-000 In stock	Nut. Flange. 6mm	£3.79 £3.16
17	HP28400-Z8B-V42 In stock	Starter Recoil Assy	£37.72 £31.43
